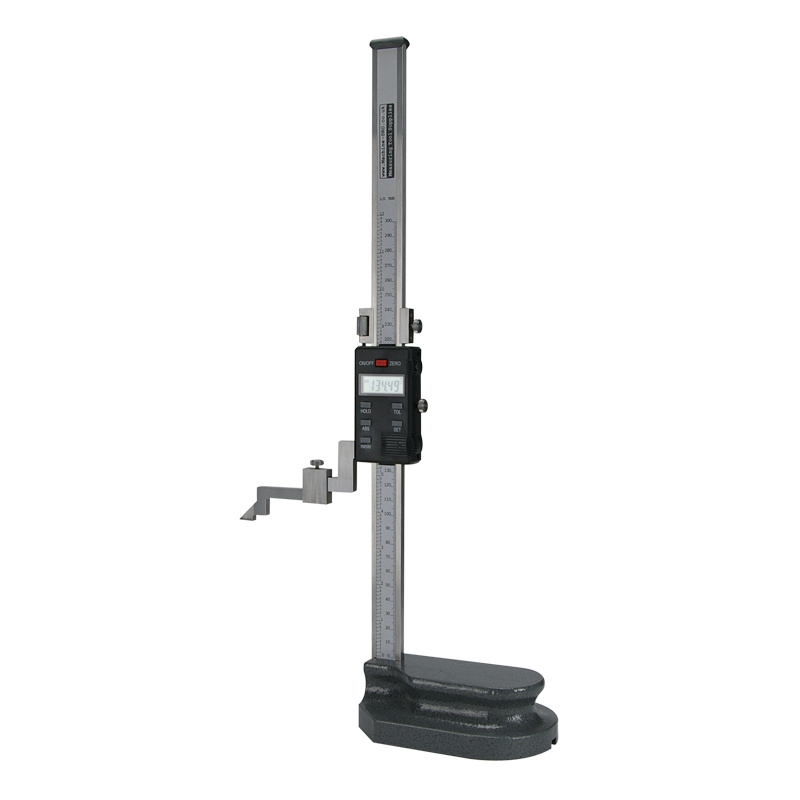

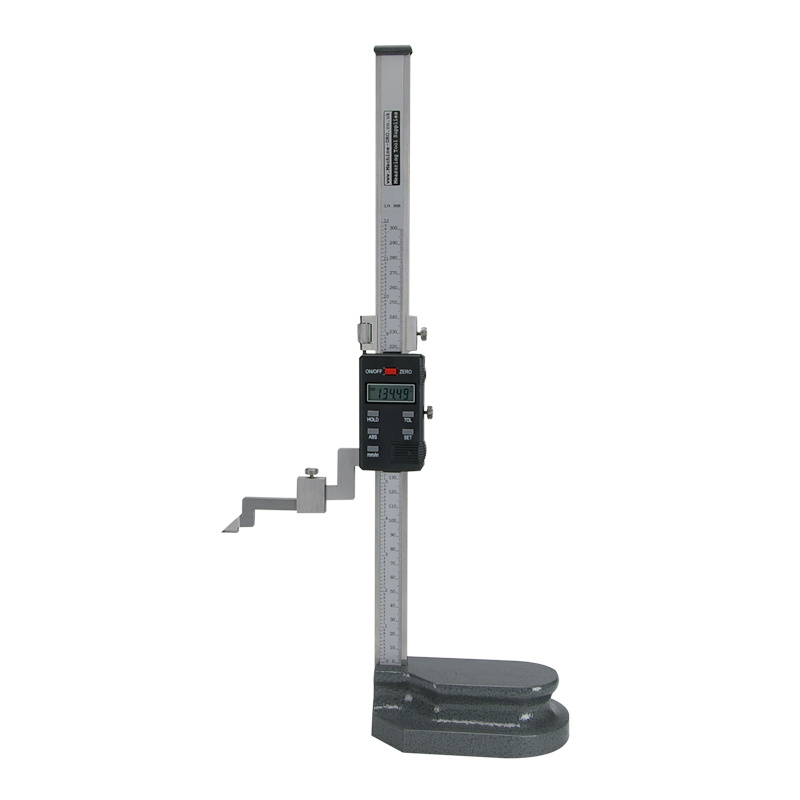

300mm (12") Digital Height Gauge with carbide scribe

QUICK OVERVIEW

300mm (12inch) digital height gauge and multi function display. The height gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing.

• Key Features

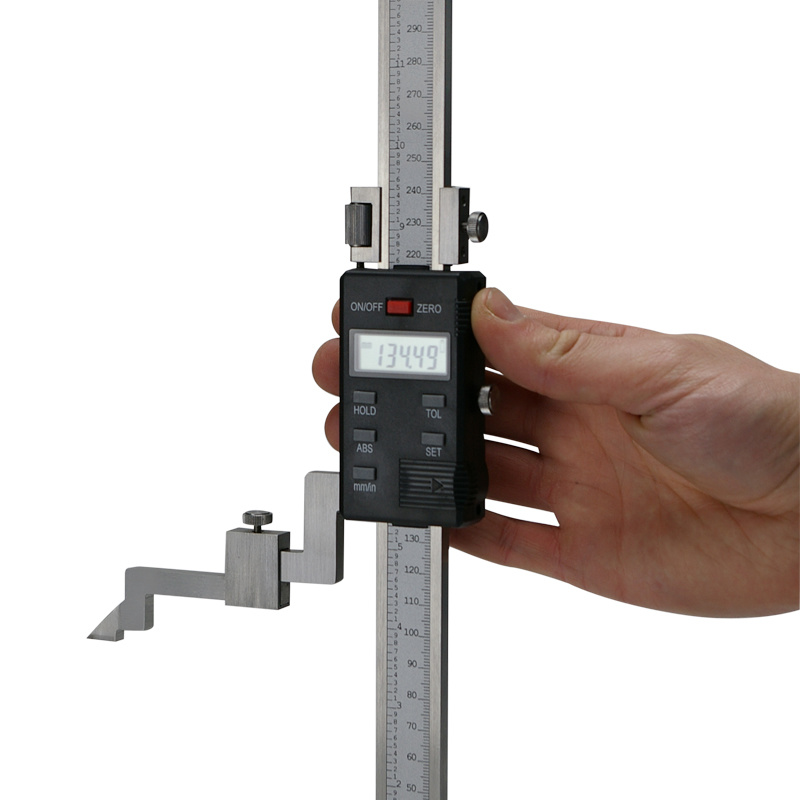

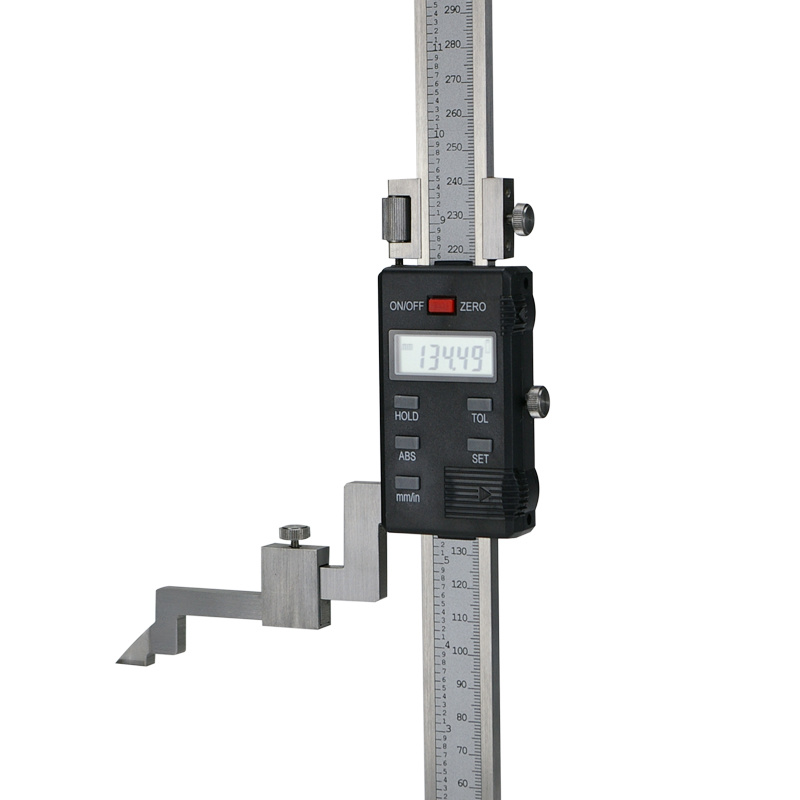

• 300mm (12inch) digital height gauge with multi function display - The basic functions include metric or imperial reading and zero the display in any position
• Tolerance Function - Set a tolerance limit, and the display will indicate if the measurement is inch under inch , inch OK inch or inch over inch the set tolerance
• Hold Function - Will hold the displayed reading until hold button is pressed again
• ABS/INC - Absolute and incremental zero can be set to zero in any position
• The scale beam is mounted in the ground cast iron base, providing a rigid assembly for the display head
• The fine feed adjustment on the display head allows for precision measuring. The reading head also has a locking screw to fix the head in any position along the scale beam

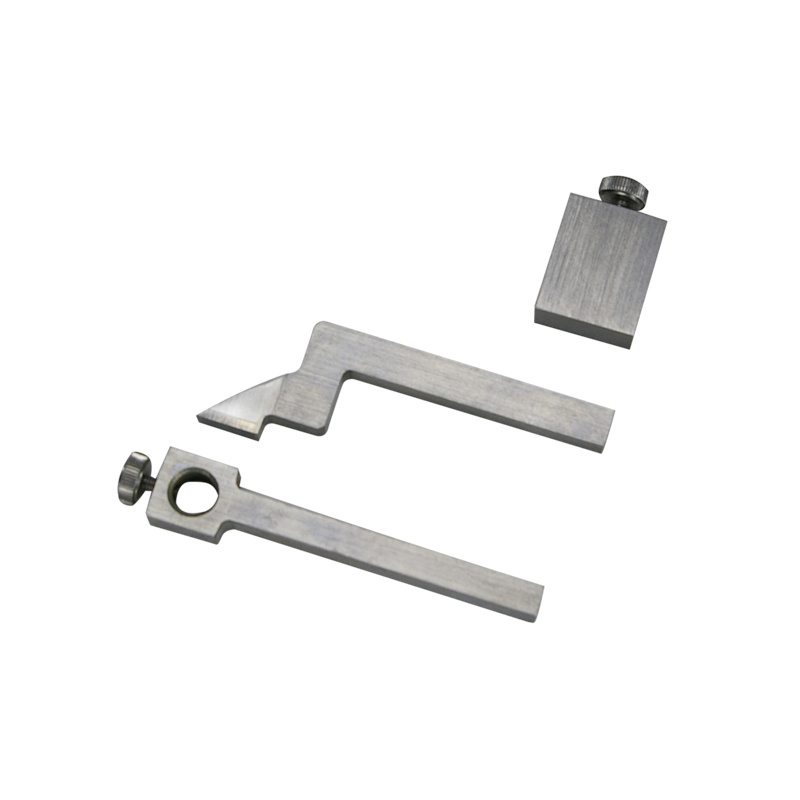

• The gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing hole with a knurled locking bolt
• Ideal for attaching depth, thickness, other probes or indicators to the height gauge
• Included with the Gauge - Scriber with carbide tip, universal attachment, battery and Instructions
• Overall Height - 470mm (18 1/2inch)
• Base size - 135mm x 90mm (5 5/16inch x 3 9/16)
• Resolution - 0.01mm (0.0005inch)
• Accuracy - +/-0.04mm
