Dial Co-Axial Centering Alignment Indicator Metric

Quantity:
  • Ningbo, China

  • Box

  • T/T, D/P

  • ME-DIAL-CENT

  • Precision Measuring Device

  • Non-Customized

  • Machine-DRO

  • Weight (grams): 777.0000

  • China

  • Dial Indicator

  • Length

  • 0.01mm

  • 0.01mm

  • Manual

  • A

Key Features

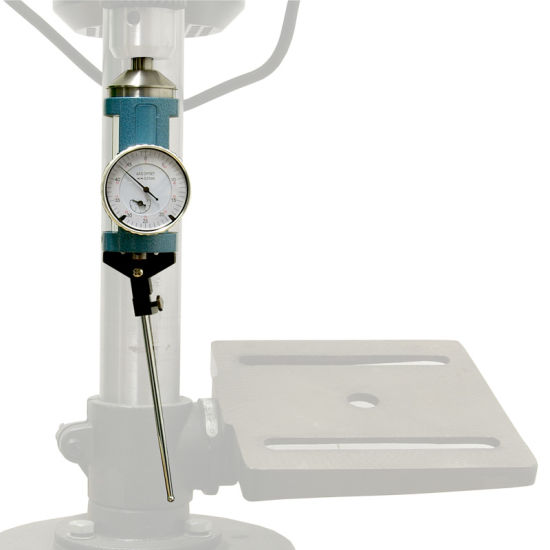

  • Locate Workpiece Centre - Simple method of centering a workpiece, fixture or assembly
  • Internal and External - Find the centre on internal or external diameters
  • Easy Operation - The outer body and indicator dial remains stationary while the center spindle with the feeler attached rotates
  • This allows the indicator dial to always face the operator. A retaining arm is included to hold the head in a convenient position
  • Large Diameter Working Area - The combination of straight and offset feelers in different lengths allows a large work area to be covered
  • Metric Dial - The dial has a metric scale used as a reference, when finding the center
  • Hand or Motor Spindle Driven - The machine spindle can either be rotated by hand or using the motor up to a maximum of 500 rpm

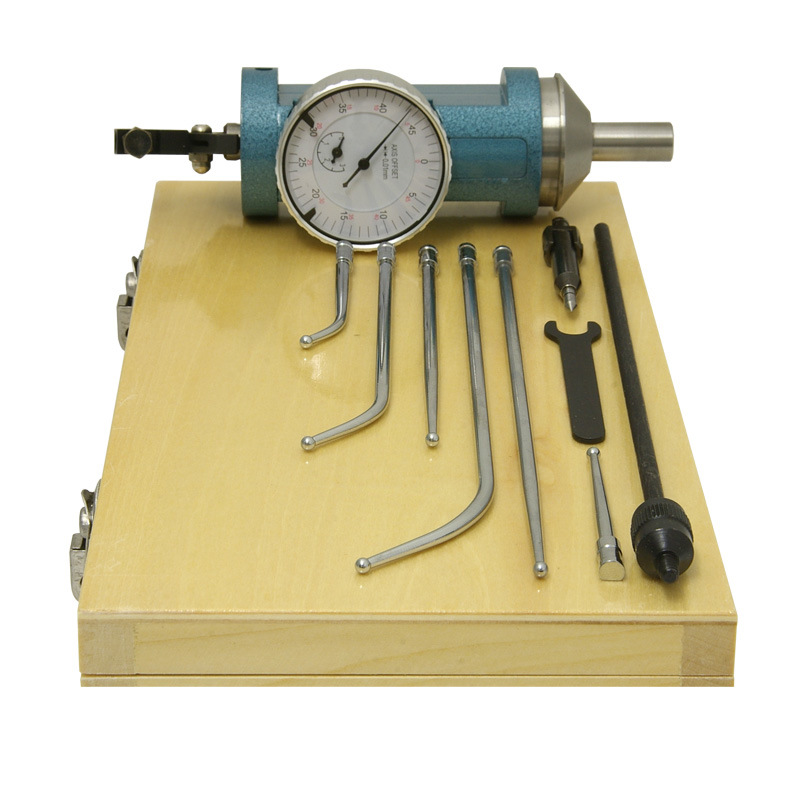

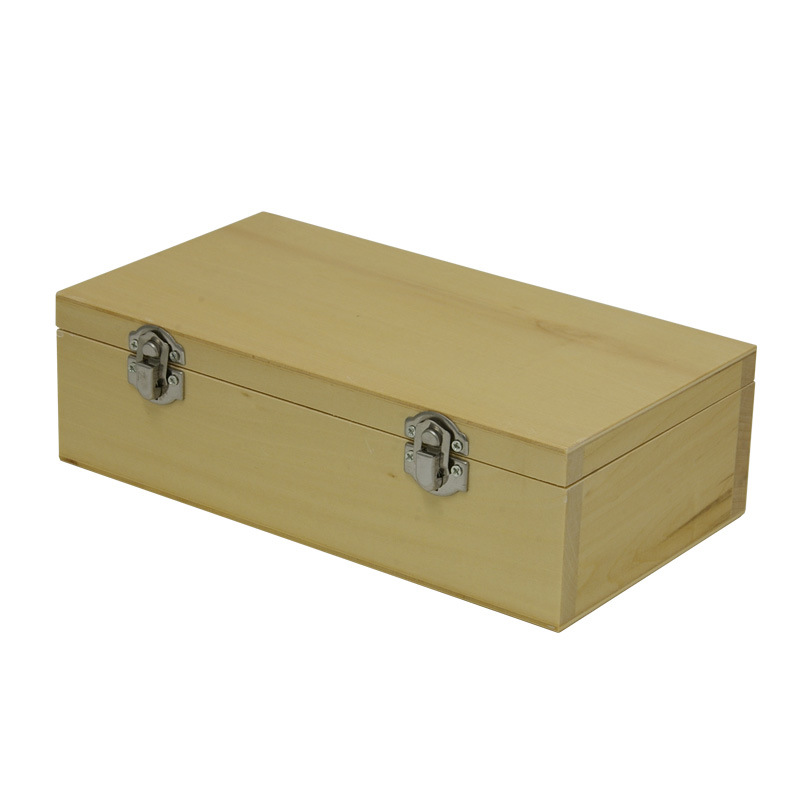

  • Included with the CO-AX Centering gauge - Main body with indicator dial, 3 off straight feelers, 3 off curved feelers, center locating feeler, spanner, retaining arm, storage case and instructions
  • Dial diameter - 40mm (1 5/8inch)
  • Body length - 120mm (4 5/8 inch)
  • Spindle length - 20mm (12/16 inch)
  • Spindle Diameter - 10mm
  • Straight feeler - 40mm (1 9/16inch), 90mm (3 9/16inch), 144mm (5 11/16inch)
  • Curved feeler - 42mm (1 11/16inch), 92mm (3 5/8inch), 142mm (5 5/8inch)
