Dial Co-Axial Centering Alignment Indicator Imperial

  • Ningbo, China

  • Box

  • T/T, D/P


  • A

  • Precision Measuring Device

  • Non-Customized

  • Machine-DRO

  • Weight (grams): 734.0000

  • China

  • Dial Indicator

  • Stainless Steel

  • Length

  • 0.01mm

  • 0.01mm

  • Manual

Key Features
  • Key Features

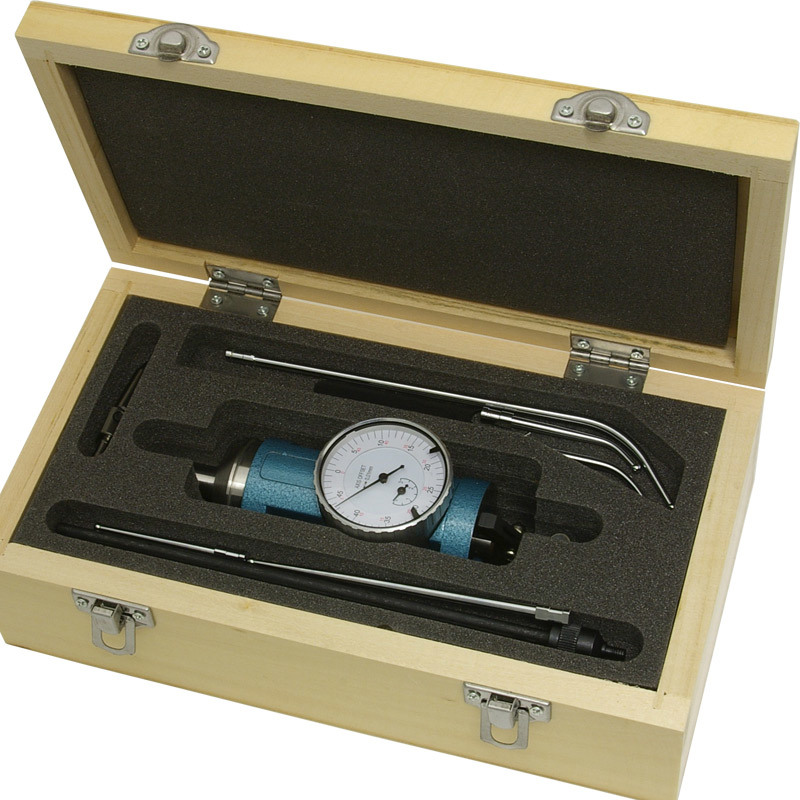

  • Dial co-axial Centering Alignment Indicator Imperial
  • Locate Workpiece Centre - Simple method of centering a workpiece, fixture or assembly
  • Easy Operation - The outer body and indicator dial remains stationary while the center spindle with the feeler attached rotates. This allows the indicator dial to always face the operator
  • Internal and External - Find the centre on internal or external diameters
  • Hand or Motor Spindle Driven - The machine spindle can either be rotated by hand or using the motor up to a maximum of 500 rpm.
  • Large Diameter Working Area - The combination of straight and offset feelers in different lengths allows a large work area to be covered
  • Imperial Dial - The dial has a imperial scale used as a reference, when finding the center
  • Included with the CO-AX Centering gauge - Main body with indicator dial, 3 off straight feelers, 3 off curved feelers, center locating feeler, spanner, retaining arm, storage case and instructions
  • Dial diameter - 1 5/8 inch (40 mm)
  • Body length - 4 5/8 inch (120 mm)
  • Spindle length - 12/16 inch (20 mm)
  • Spindle Diameter - 3/8 inch (9.53mm)
  • Straight feeler - 1 5/8inch (40mm), 3 9/16inch (90 mm),5 11/16inch (144 mm)
  • Curved feeler - 1 11/16inch (42 mm), 3 5/8inch (92mm), 5 5/8inch (142 mm)
  • Please Note - The Images of the Metric unit is for example only, this is an Imperial Unit (The colour may also differ)

    Dial Co-Axial Centering Alignment Indicator Imperial
    Dial Co-Axial Centering Alignment Indicator Imperial
    Dial Co-Axial Centering Alignment Indicator Imperial
