Rotary angle encoder with a remote LCD display with a resolution of 0.1 degrees.
The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position.

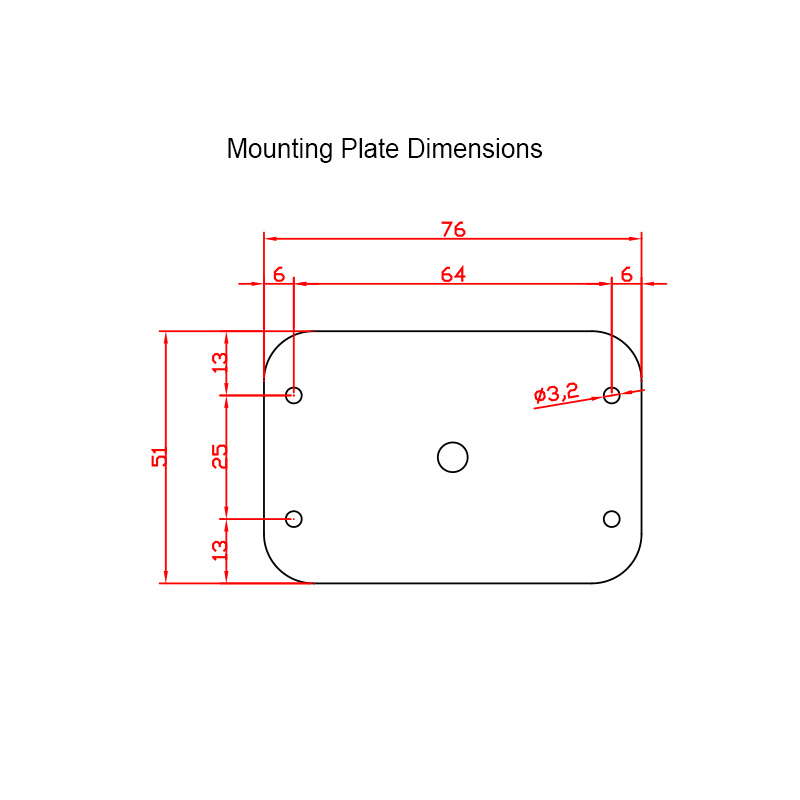

The rotary encoder has a flat steel flange with four mounting holes and 6mm diameter shaft.
The Display is linked to the rotary encoder by a standard RJ45 cable. This allows the display and encoder to be disconnected. A 900mm cable is included.
The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display.
We would recommend that 5 metres is the maximum cable length when using the Angle Tilt Sensor/Inclinometer.
Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues.
Please Note: The rotary encoder must not be used at high speed/rpm. Protect encoder from coolant and moisture ingress.
Applications Include : Rotary tables, Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle etc.
Accuracy - +/-0.1 degrees.
Key Features
Rotary angle encoder with a remote LCD display with a resolution of 0.1 degrees.
The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position.
The rotary encoder has a flat steel flange with four mounting holes and 6mm diameter shaft.
The Display is linked to the rotary encoder by a standard RJ45 cable. This allows the display and encoder to be disconnected. A 900mm cable is included.
The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display.
We would recommend that 5 metres is the maximum cable length when using the Angle Tilt Sensor/Inclinometer.
Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues.
Please Note: The rotary encoder must not be used at high speed/rpm. Protect encoder from coolant and moisture ingress.
Applications Include : Rotary tables, Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle etc.
