M12 (1/2 Inch) Tapping Machine - 1000mm Reach Pantographic Arm and Collet Set - 220V Electric Motor

Quantity:
  • Ningbo, China
  • Box
  • T/T, D/P
  • TA-EL-3-12
  • New
  • Non-Customized
  • Weight (grams): 27500.0000
  • Machine Tapping
  • China
Key Features

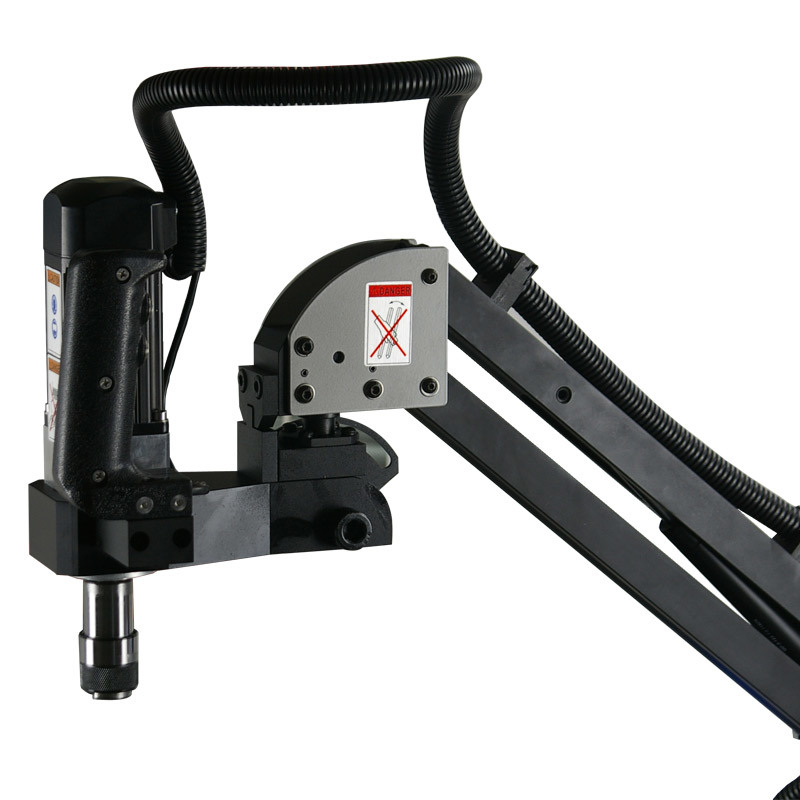

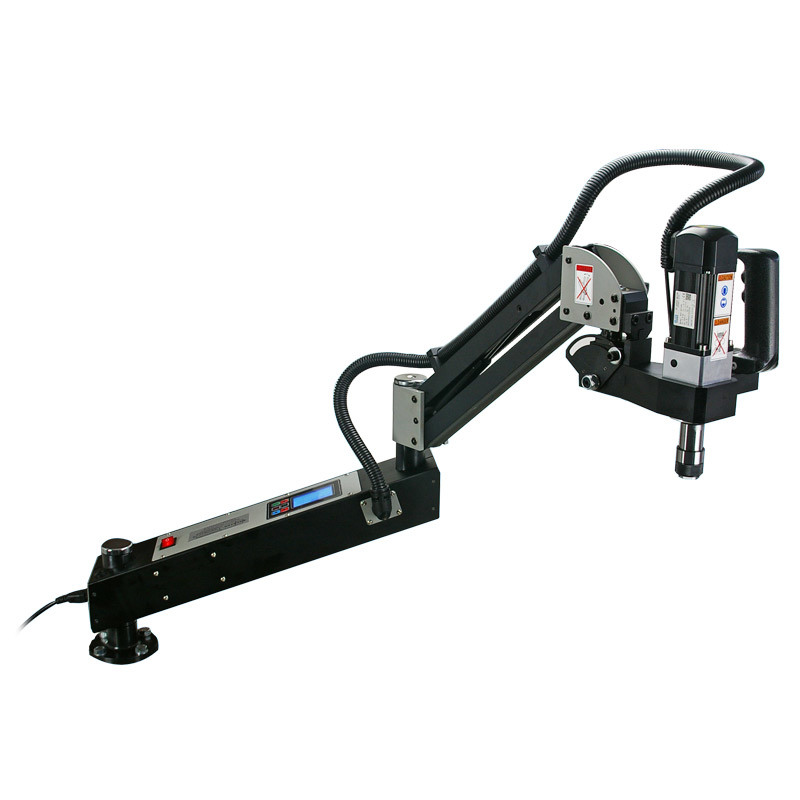

  • Articulated arm and electric driven motor with quick change collet chuck. (Bliz type)
  • Tapping range M3 to M12
  • 1000mm working reach.

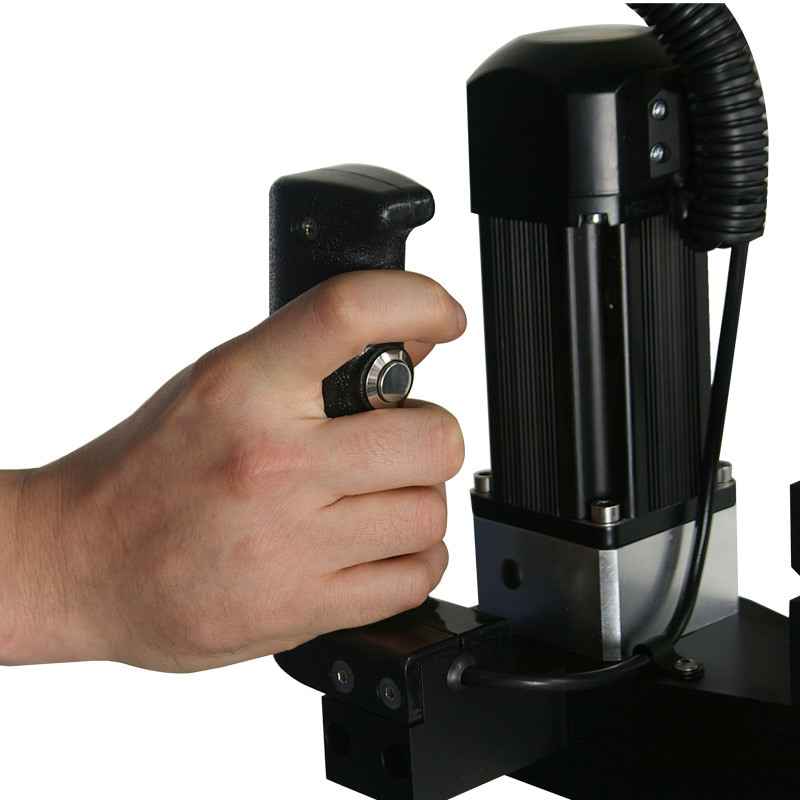

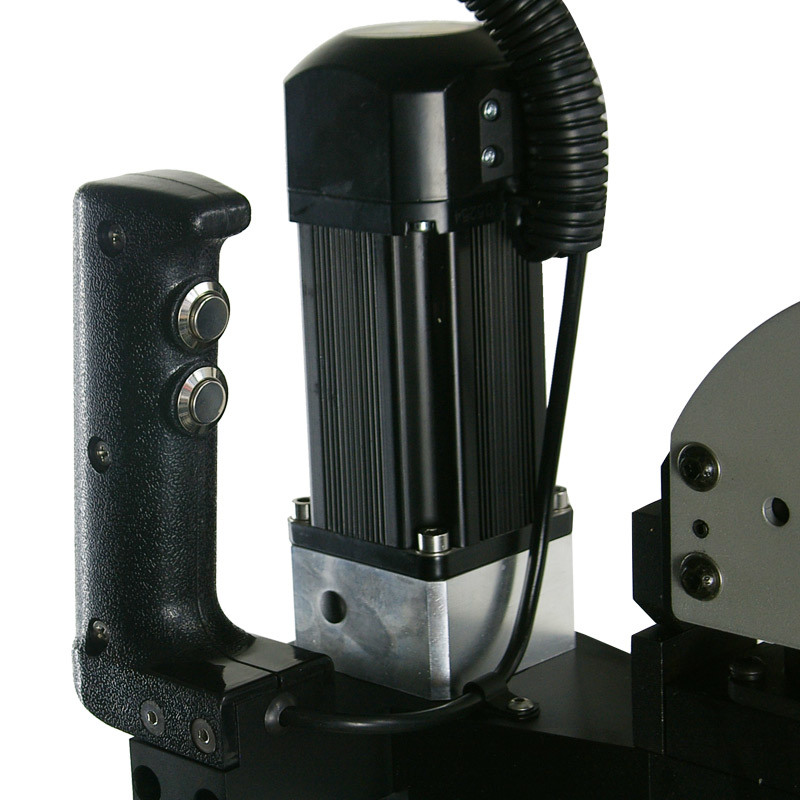

  • Simple push button forward and reverse operation.

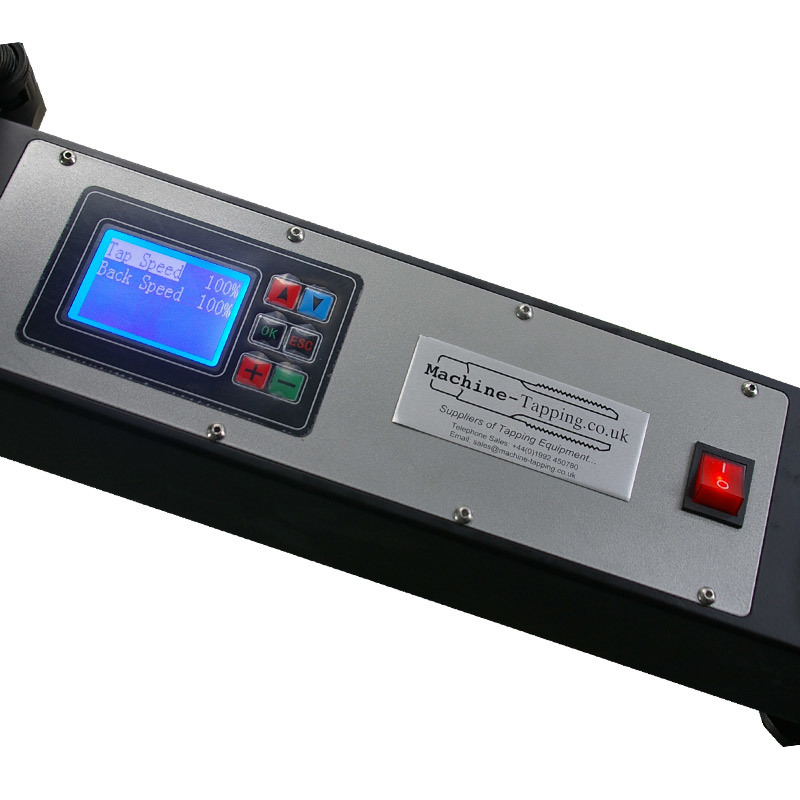

  • LCD display with an easy to use menu system for setting RPM and thread pitch to program auto reverse.
  • Requires a 220 Volt single phase electrical supply. The tapping machine has a standard IEC connector allowing the power cable to easily detach. A standard mains cable is supplied with 13 amp plug.

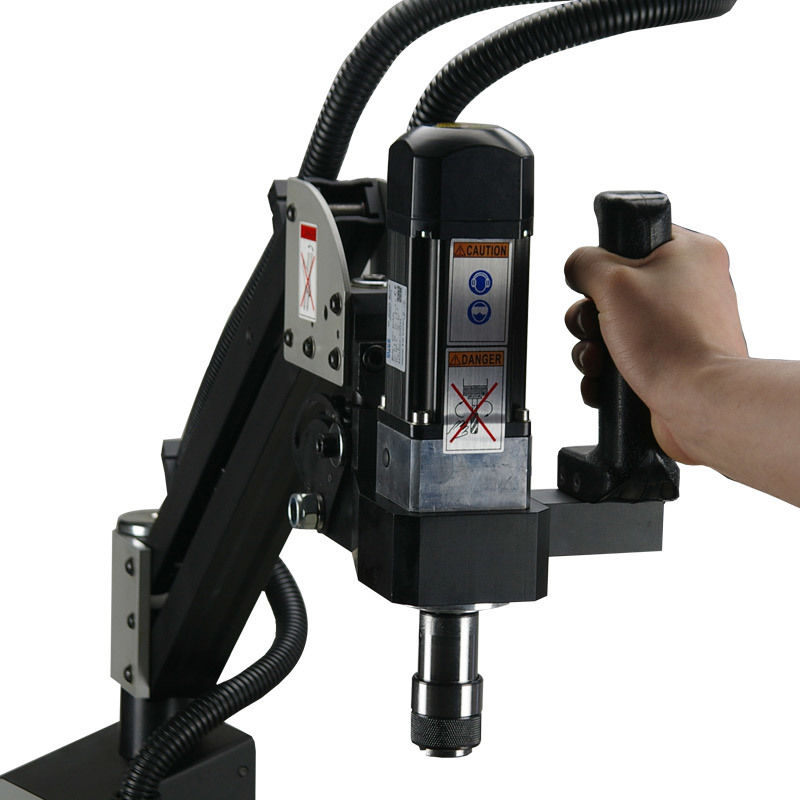

  • Vertical and Horizontal adjustable tapping head.
  • Reduce tap breakage. Each tap collet has a ratchet clutch, that will slip should the tap encounter an obstruction. The torque can be adjusted if required.
  • Through hole and blind holes can be tapped.
  • Removes tapping operations from machine tools and CNC machine centres.
  • Easy to re-align with threaded holes to remove contamination after painting or coating processes.
M12 (1/2 Inch) Tapping Machine - 1000mm Reach Pantographic Arm and Collet Set - 220V Electric Motor
M12 (1/2 Inch) Tapping Machine - 1000mm Reach Pantographic Arm and Collet Set - 220V Electric Motor
M12 (1/2 Inch) Tapping Machine - 1000mm Reach Pantographic Arm and Collet Set - 220V Electric Motor
M12 (1/2 Inch) Tapping Machine - 1000mm Reach Pantographic Arm and Collet Set - 220V Electric Motor
M12 (1/2 Inch) Tapping Machine - 1000mm Reach Pantographic Arm and Collet Set - 220V Electric Motor
M12 (1/2 Inch) Tapping Machine - 1000mm Reach Pantographic Arm and Collet Set - 220V Electric Motor
