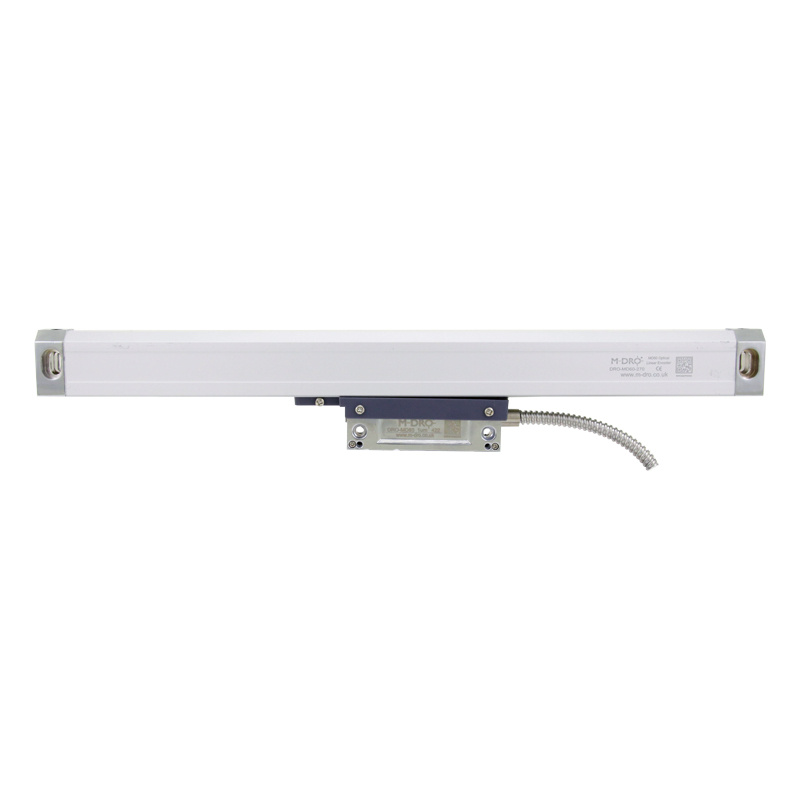

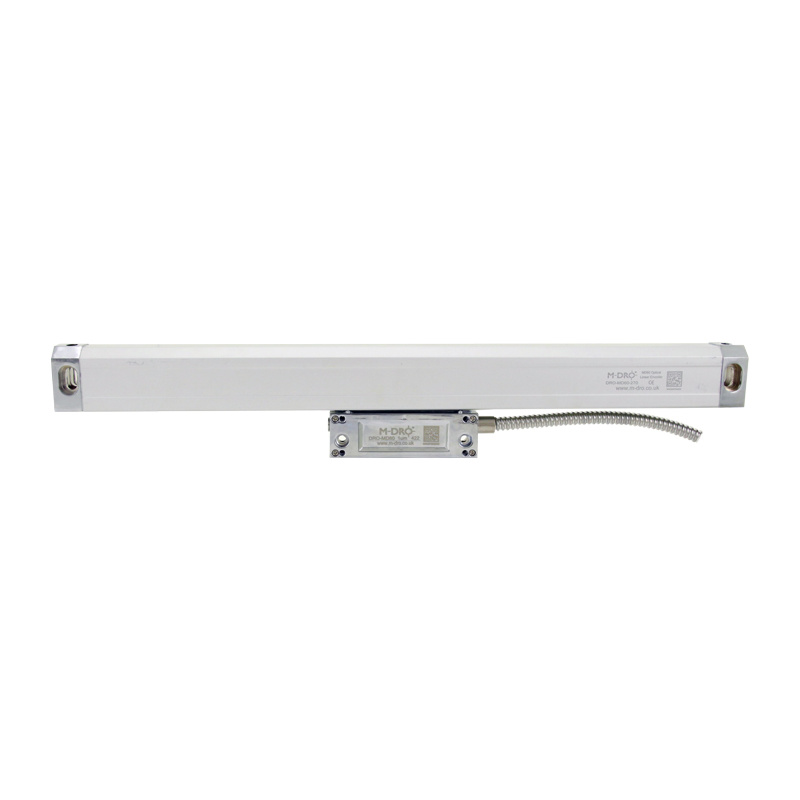

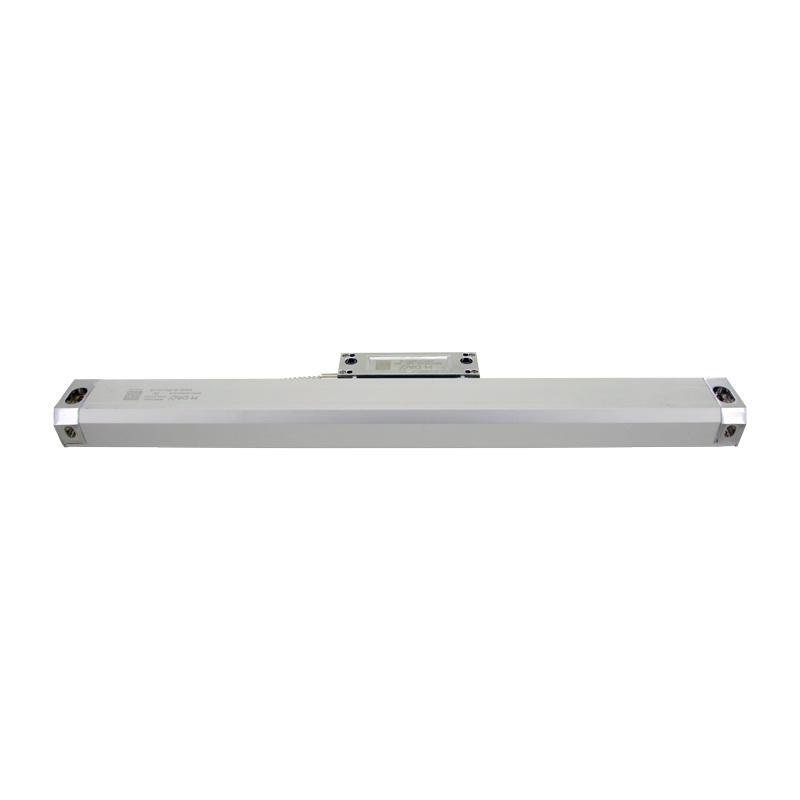

M-Dro 520mm (20 1/2 Inch) Reading Length Linear Optical Encoder with 5um Resolution

Key Features

• The M-DRO MD60 precision optical glass grated scale with 5 micron resolution.

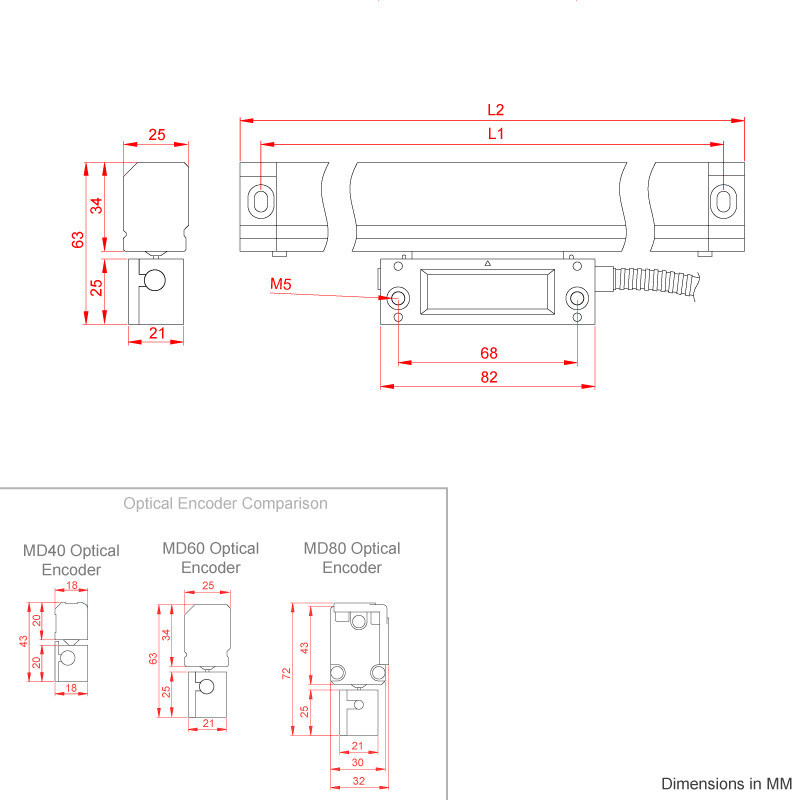

• Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting.

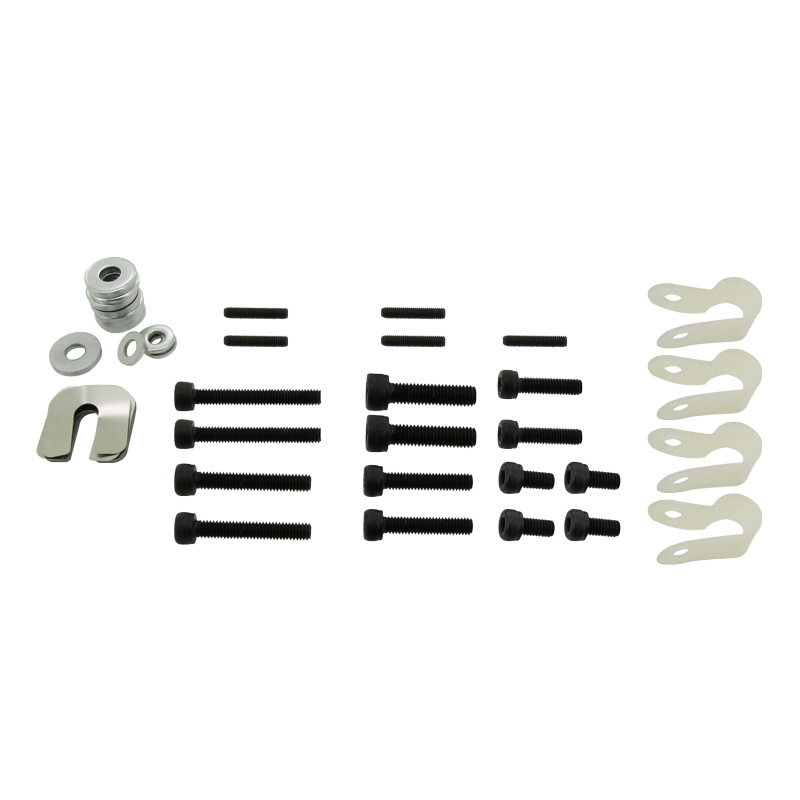

• The reading head offers several mounting options including easy attachment to brackets and additional mounting hardware.
• Optional protective covers are available, a single part cover that fits over the scale or a two part cover with a mounting spar, for simple installation on a non-machined face.
• Robust and flexible stainless steel armoured cable offering a high level of protection.
• Each encoder and reading head is laser etched with model and unique serial number.
• Supplied with a calibration certificate.
• Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment.
• Resolution - 0.005mm (0.0002 inch)
• Encoder Type - Optical
• Output signal - EIA422 differential TTL quadrature
• Cable length - 3 Metres
• Protection class - IP53
