M-Dro 370mm (14 1/2 Inch) Reading Length Linear Optical Encoder with 1um Resolution

Quantity:
  • Ningbo, China

  • Box

  • T/T, D/P

  • DRO-MD60-370-1U

  • Contact

  • Contact Brush Type

  • Axle Sleeve Type

  • Weight (grams): 1000.0000

  • M-DRO

  • China

Key Features
  • The M-DRO MD60 precision optical glass grated scale with 1 micron resolution.
  • Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting.

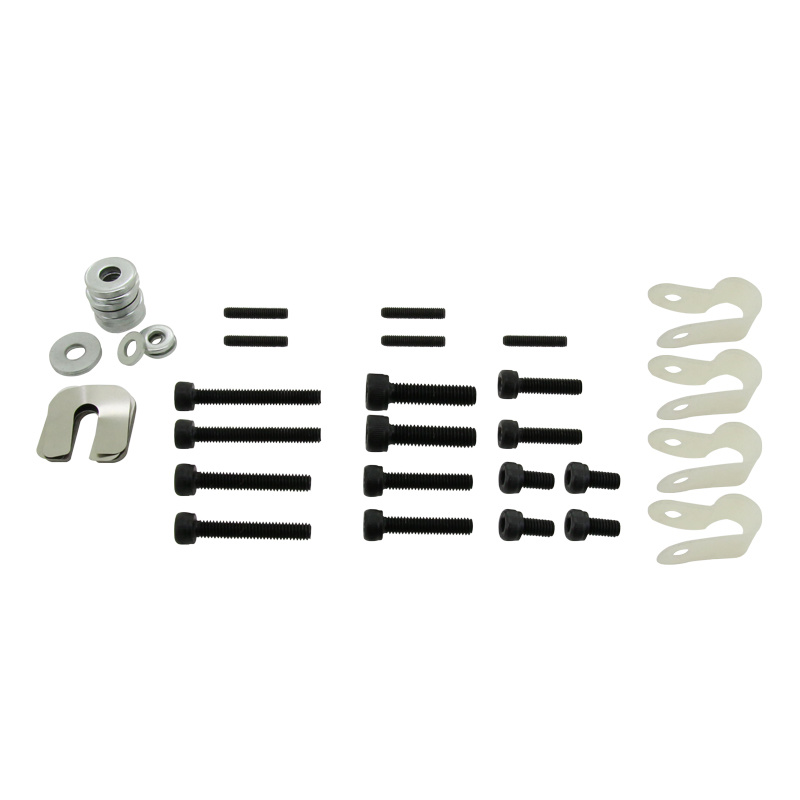

  • The reading head offers several mounting options including easy attachment to brackets and additional mounting hardware.
  • Optional protective covers are available, a single part cover that fits over the scale or a two part cover with a mounting spar, for simple installation on a non-machined face.
  • Robust and flexible stainless steel armoured cable offering a high level of protection.
  • Each encoder and reading head is laser etched with model and unique serial number.
  • Supplied with a calibration certificate.
  • Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment.
  • Resolution - 0.001mm (0.00004 inch)
  • Encoder Type - Optical
  • Output signal - EIA422 differential TTL quadrature
  • Cable length - 3 Metres
  • Protection class - IP53

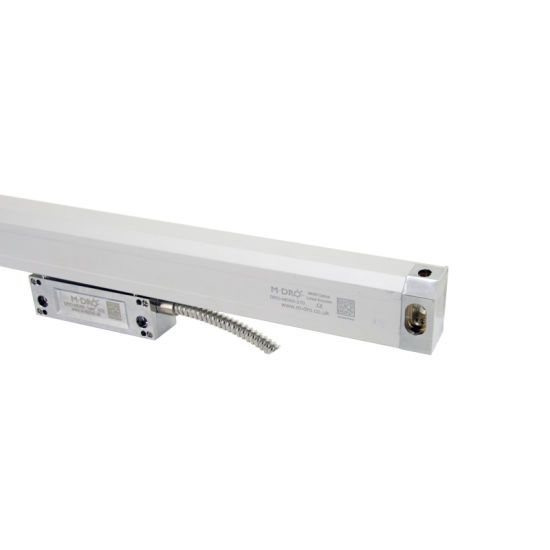

M-Dro 370mm (14 1/2 Inch) Reading Length Linear Optical Encoder with 1um Resolution

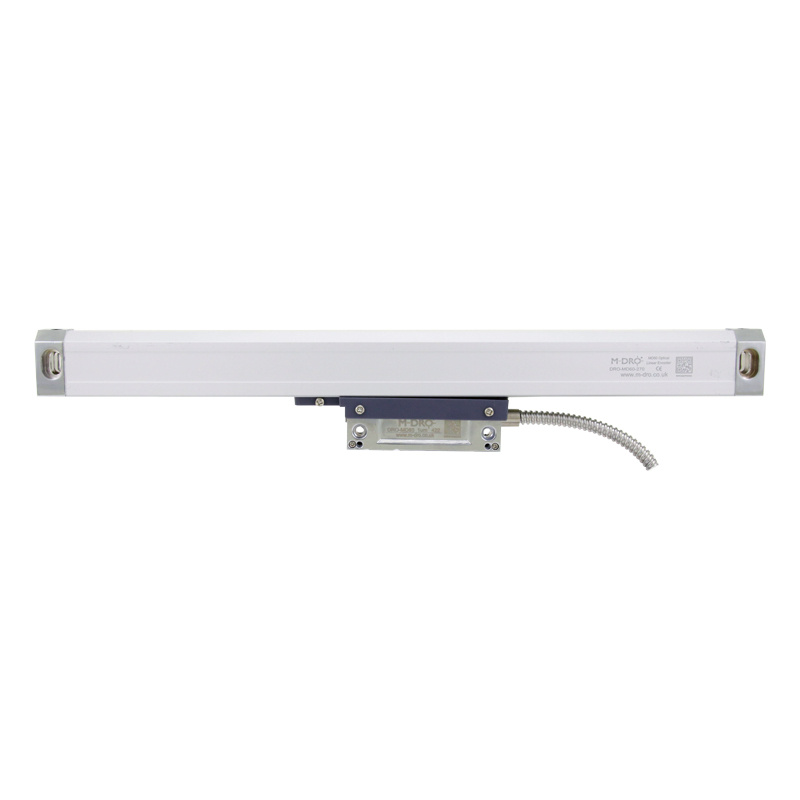

M-Dro 370mm (14 1/2 Inch) Reading Length Linear Optical Encoder with 1um Resolution

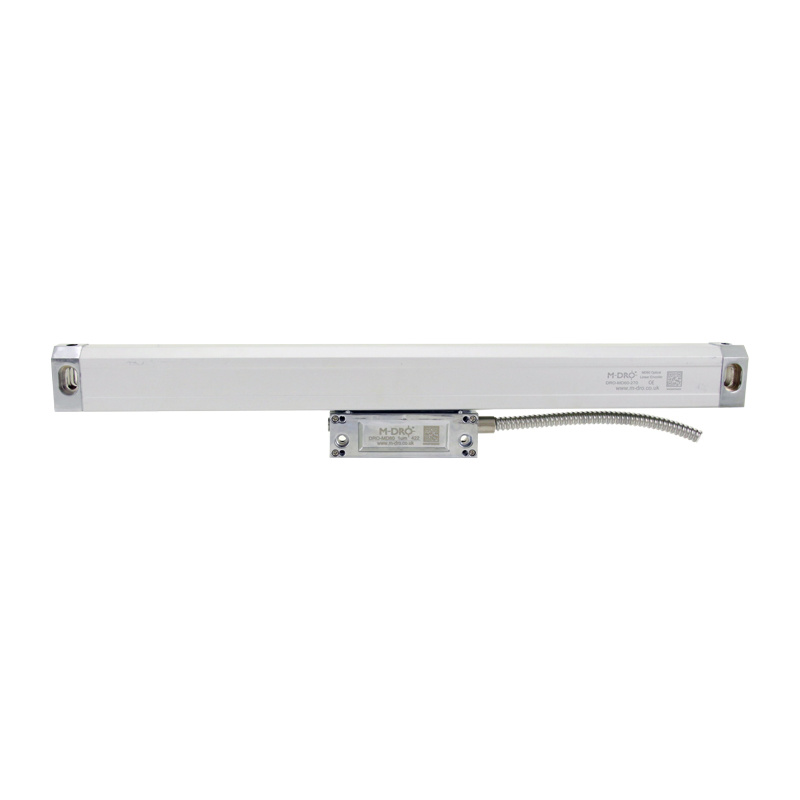

M-Dro 370mm (14 1/2 Inch) Reading Length Linear Optical Encoder with 1um Resolution

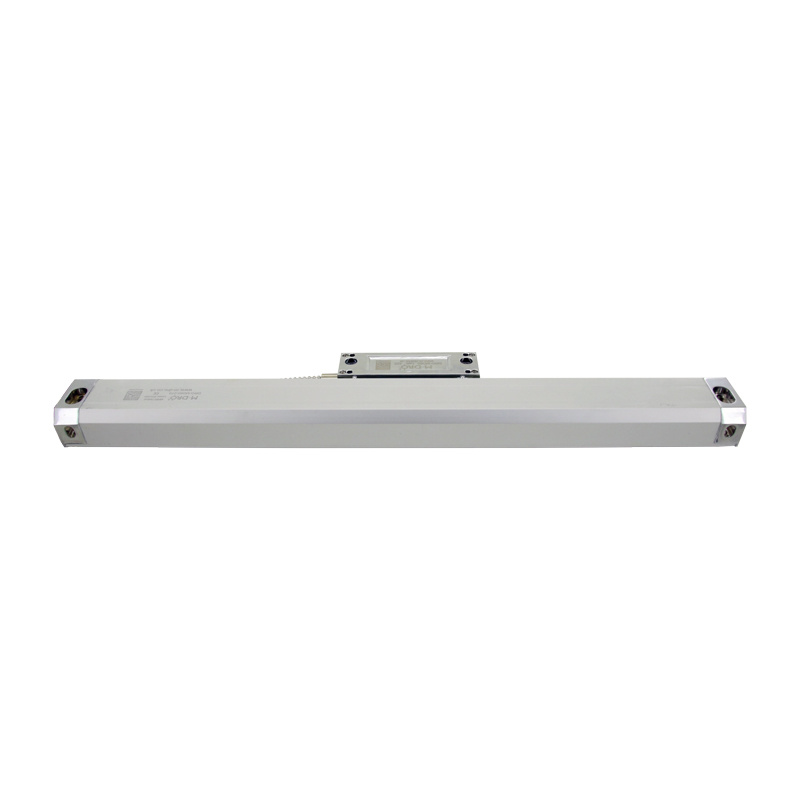

M-Dro 370mm (14 1/2 Inch) Reading Length Linear Optical Encoder with 1um Resolution








M-Dro 370mm (14 1/2 Inch) Reading Length Linear Optical Encoder with 1um Resolution

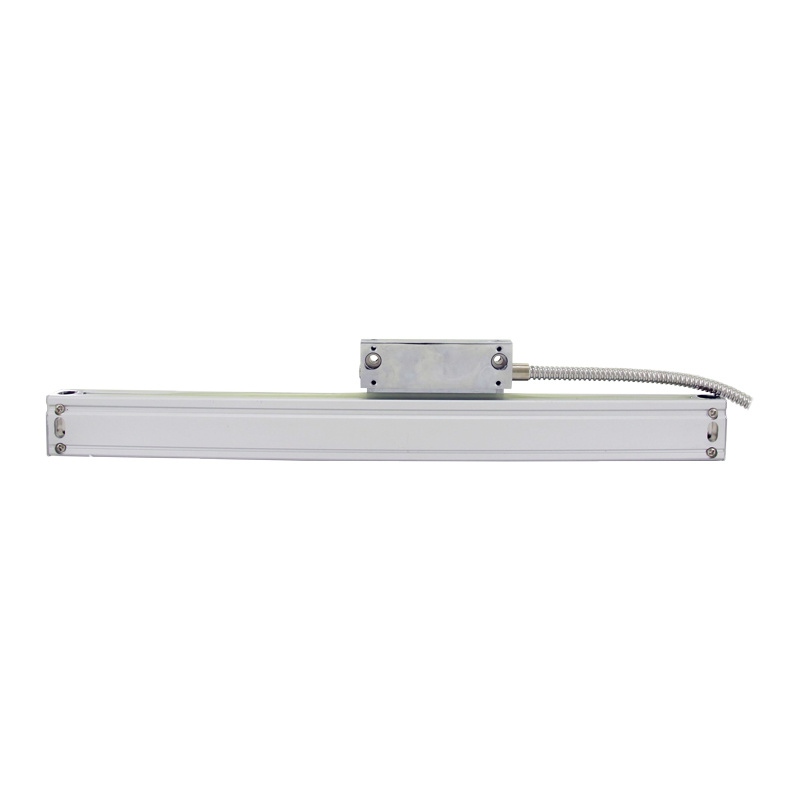

M-Dro 370mm (14 1/2 Inch) Reading Length Linear Optical Encoder with 1um Resolution
