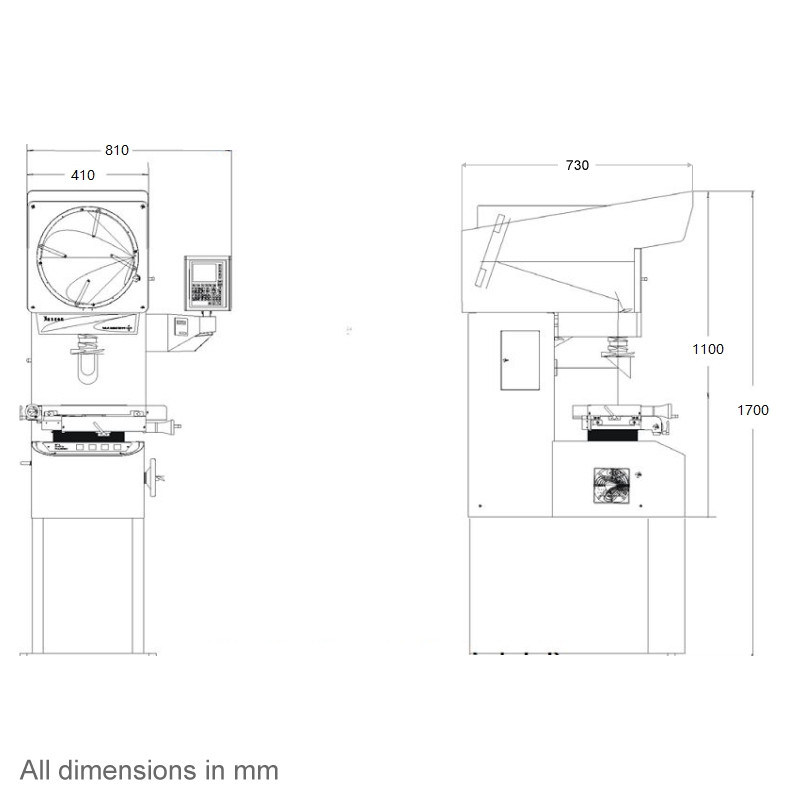

Easson Shadowgraph Profile Projector with Inspection Function Dro-Es-Ep1-1510

Quantity:
  • Ningbo, China
  • Box
  • T/T, D/P
  • DRO-ES-EP1-1510
  • China
  • New
  • Non-Customized
  • Iron
  • Metal Processing Machinery Parts
  • Weight (grams): 350000.0000
  • M-DRO
Key Features
  • A bench-top profile projector - A precision instruments that make possible accurate 2D measurements. Also known as Profile Projectors, Shadowgraphs or Optical Comparators
  • Ideal for inspection of - dyes, molds, screws, gears, plastic, glass, electronic components and more
  • Measures - arcs, circles, lines, chamfers, perpendicularities, distances between points, and more
  • EP profile projectors allow direct (diascopy) and reflective (episcopy) measurements
  • Supplied with a 2 axis digital readout console with functions such as 3 point circle measurement, 2 point distance measurement, 4 point line intersection measurement, and more
  • Table dimensions - 300 x 170mm
  • Glass dimensions - 175 x 127mm
  • X travel - 150mm / Y travel - 100mm
  • Functions - ZERO setting +/- direction, RS-232C interface
  • Optional graphical display options available
