Angle Tilt Sensor/Inclinometer with Remote Display - Pendulum type.
Tilt/incline angle sensor with a remote LCD display with a resolution of 0.1 degrees.
As the angle sensor is rotated a weighted internal pendulum, provides a reference and remote display calculates the angle.

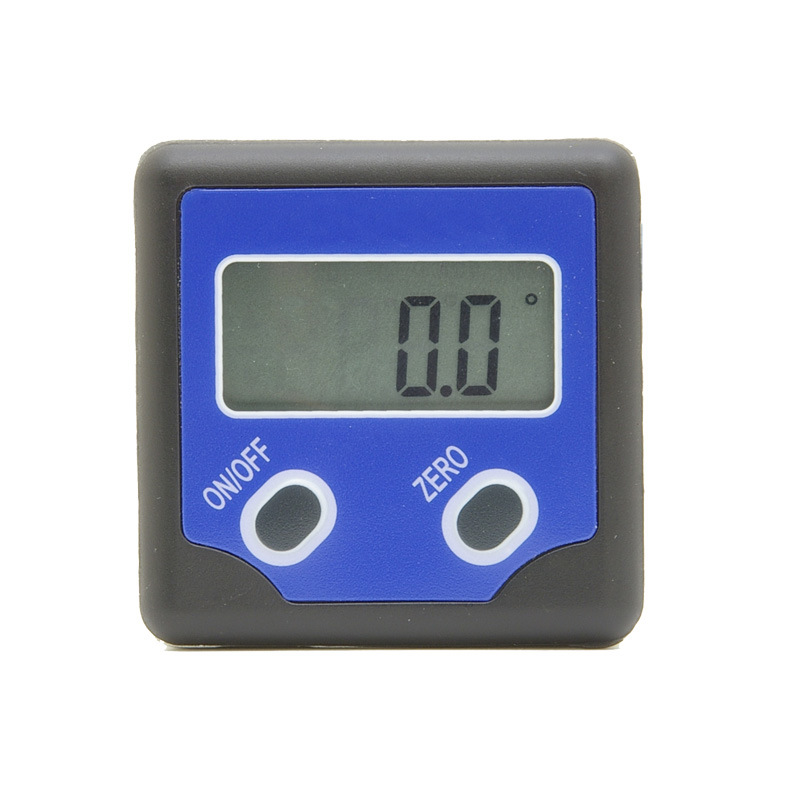

The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position.
The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display.

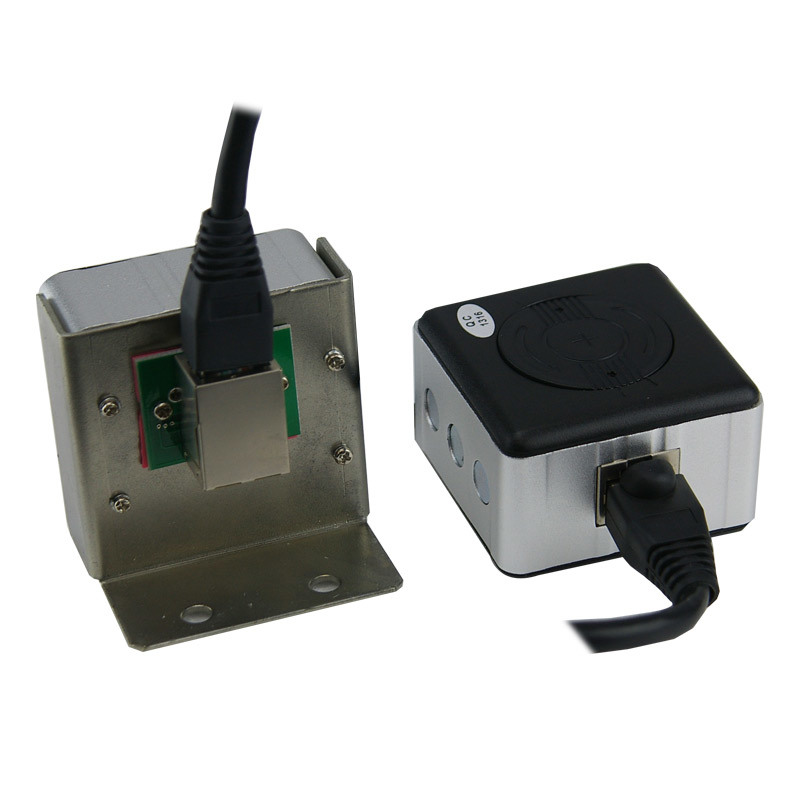

The Display is linked to the angle sensor by a 910mm (36") cable. This is a standard standard Cat 5E Ethernet (RJ45) cable. Longer cables can be purchased separately.
This allows the display and angle sensor to be disconnected. The angle sensor has a mounting flange with two mounting holes.
We would recommend that 5 meters is the maximum cable length when using the Angle Tilt Sensor/Inclinometer.
Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues.
Please Note - The sensor must not be subjected to harsh vibration. Protect sensor from coolant and moisture ingress.
Applications Include - Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle, table saws etc.
Included with the gauge - Remote LCD display, Angle sensor and 3.0V CR2032 Battery.
Range: 0-360 degrees.
Accuracy - +/- 0.1 degrees.
LCD Display - 10mm character height.
