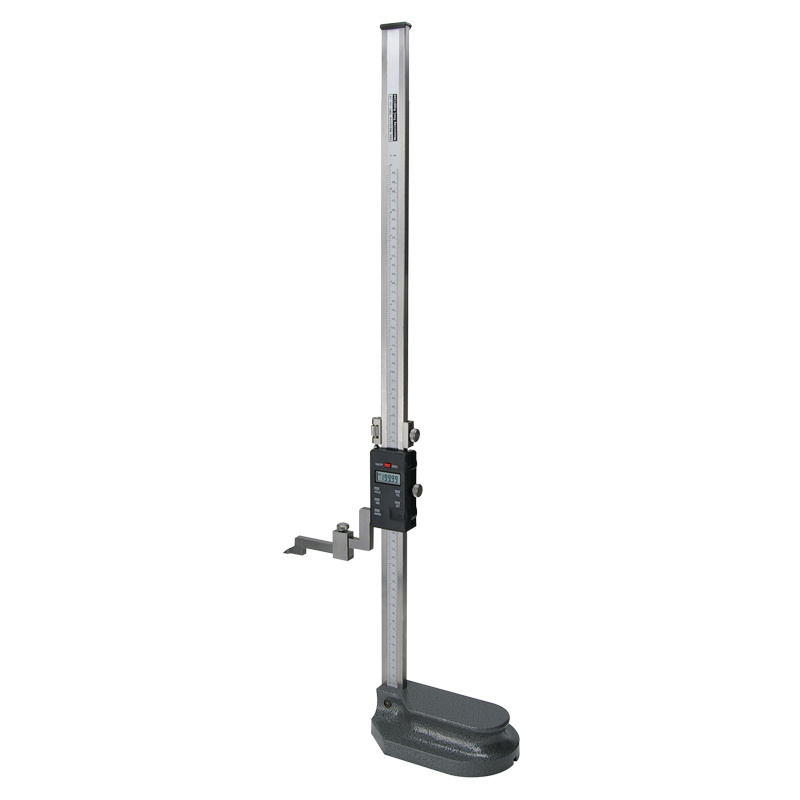

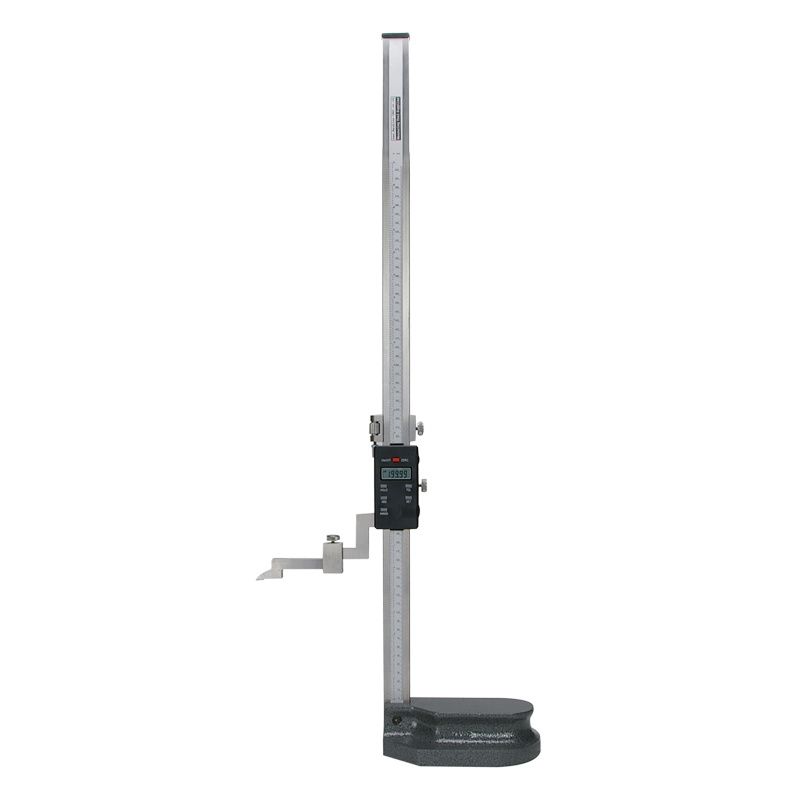

600mm (24") Digital Height Gauge with Carbide Scribe.

Quantity:
  • Shanghai, China
  • Carton
  • L/C, T/T
  • ME-HG-600
  • A
  • Precision Measuring Device
  • Non-Customized
  • Allendale
  • China
  • 9017300000
  • Digital Height Gauge
  • Stainless Steel
  • Depth
  • 0-600mm
  • 0.01mm
  • Manual

600mm (24") Digital Height Gauge with carbide scribe...

QUICK OVERVIEW

600mm (24inch) digital height gauge and multi function display. The height gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing
  • Key Features
  • 600mm (24inch) digital height gauge and multi function display. The basic functions include metric or imperial reading and zero the display in any position
  • Tolerance Function - Set a tolerance limit, and the display will indicate if the measurement is Under, Over or In the set tolerance. The measurement value is also displayed
  • Set Value - Enter a measurement value
  • Hold Function - Will hold the displayed reading until hold button is pressed again
  • ABS/INC - Absolute and incremental zero can be set to zero in any position
  • Data Output - External data output interface via data cable (not supplied)
  • The scale beam is mounted in the ground cast iron base, providing a rigid assembly for the display head
  • The fine feed adjustment on the display head allows for precision measuring. The reading head also has a locking screw to fix the head in any position along the scale beam

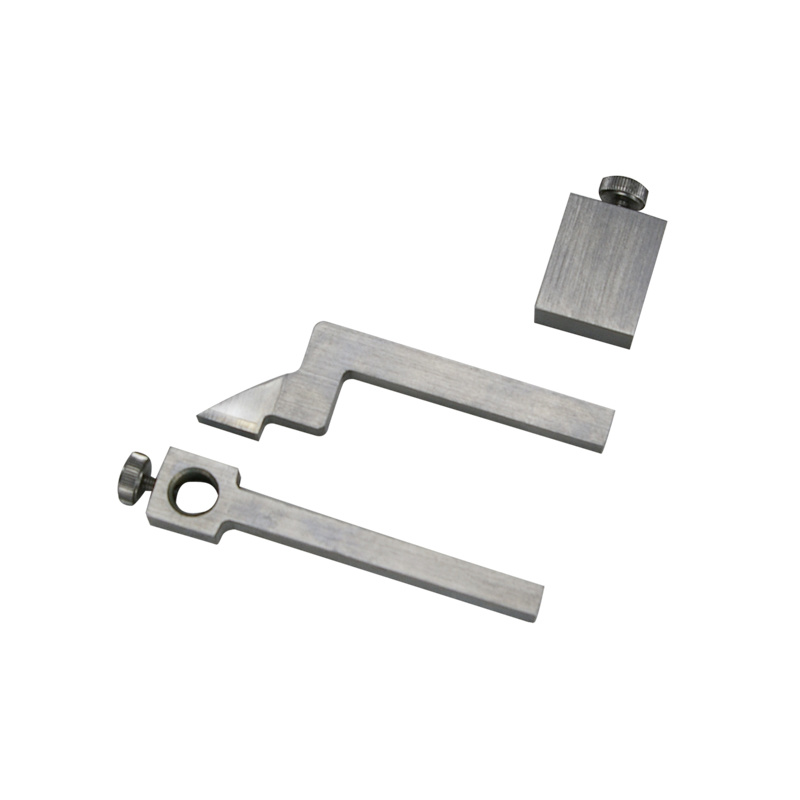

  • The gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing hole with a knurled locking bolt.
  • Ideal for attaching depth, thickness, other probes or indicators to the height gauge
  • Resolution - 0.01mm (0.0005inch)
  • Accuracy - +/-0.05mm
600mm (24

600mm (24 600mm (24
600mm (24
600mm (24
Despatch Time Same Day Dispatch
SKU 5055396109658
Part Number ME-HG-600
Brand Machine DRO
MPN ME-HG-600
Display Type Digital
Range Group 0-600mm / 0-24"
