50 to 160mm Dial Bore Gauge

  • Shanghai, China

  • Carton

  • L/C, T/T

  • ME-BG-50-160

  • Manual

  • A

  • Precision Measuring Device

  • Non-Customized

  • Allendale

  • Dial Diameter - 55mm

  • China

  • 9017300000

  • Bore Gauge

  • Stainless Steel

  • Inside Diameter

  • 50~160mm

  • 0.01mm

  • 0.003mm

50 to 160mm Dial Bore gauge


Dial Bore gauge with a 50 to 150mm measuring range
  • Key Features
  • The dial bore gauge offers - an accurate method of measuring a bore, or detecting a taper or ovality
  • Calibration - The dial bore gauge must be calibrated to a known size and will indicate the deviation from that size by a maximum of 1mm

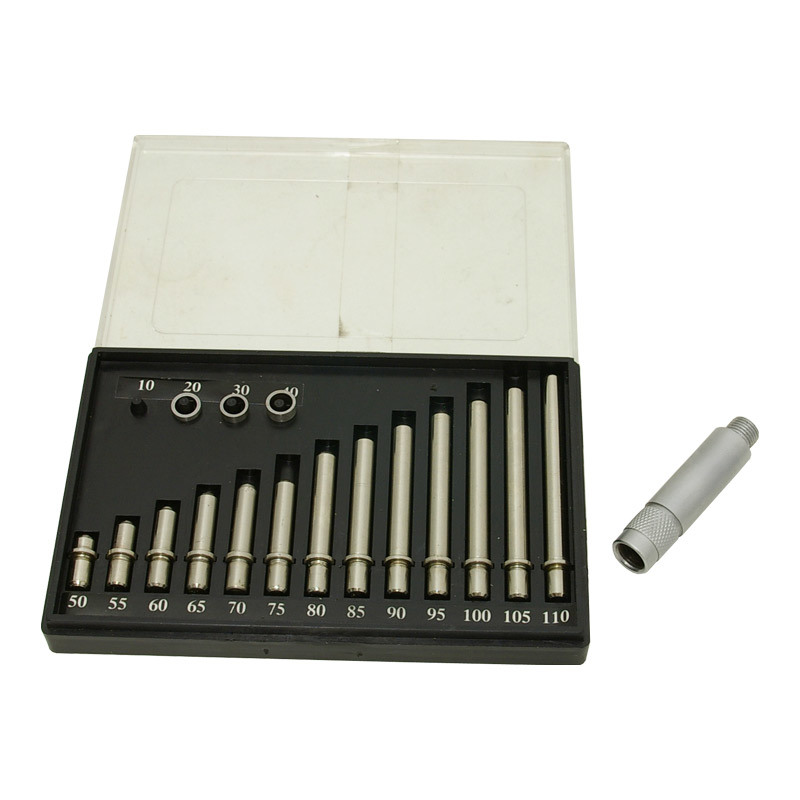

  • A set of spacer rings and anvils are included with the bore gauge
  • The anvils are used to set the measuring range to within 1mm of the desired bore to be measured or produced
  • An outside micrometer, setting ring or slip gauges can be used to calibrate the bore gauge

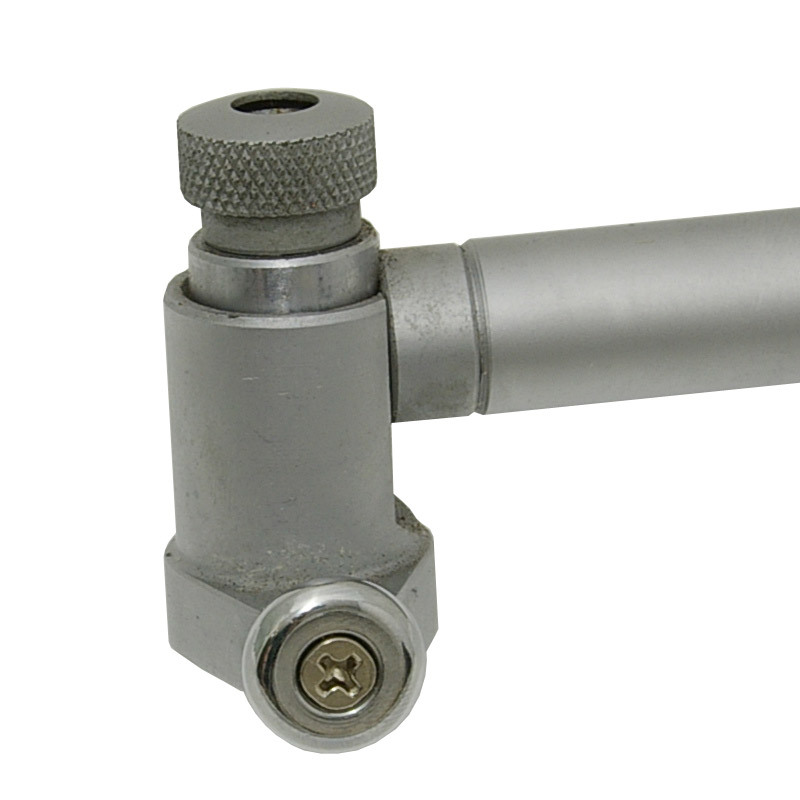

  • The bore gauge has a knurled locknut to secure the anvils and spacers
  • There is a sprung loaded guide used to centralize the two measuring contact points to the bore
  • At the opposite end of the gauge there is a heat insulating handle with a split collet and knurled locking ring to secure the dial indicator

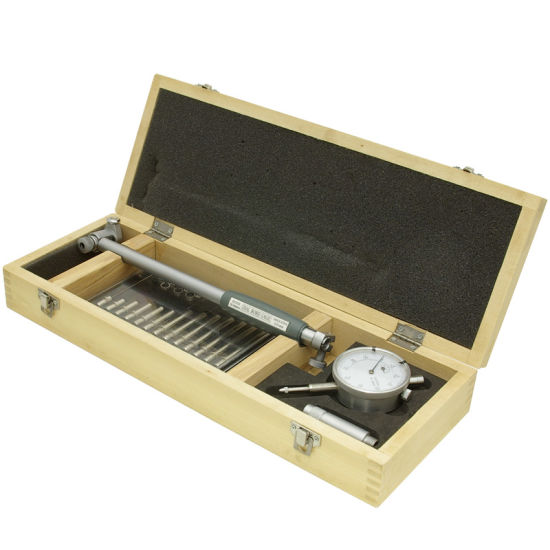

  • Included with the bore gauge - Probe body, Dial indicator, 13 Anvils, 4 Spacer rings, Wooden storage case and Instructions
  • Measuring Range - 50 to 160mm
  • Probe Length - 150mm
  • Dial Diameter - 55mm
  • Resolution - 0.01mm
50 to 160mm Dial Bore Gauge
50 to 160mm Dial Bore Gauge
50 to 160mm Dial Bore Gauge
50 to 160mm Dial Bore Gauge
Despatch Time Same Day Dispatch
SKU 5055396108705
Part Number ME-BG-50-160
Brand Machine DRO
MPN ME-BG-50-160
Type Cylinder Bore Gauge
Measurement Units Millimetre
Display Type Dial
Range Group 50-160mm / 2-6"
Resolution 0.01mm
