35 to 50mm Internal Dial Bore Gauge

  • Shanghai, China
  • Carton
  • L/C, T/T
  • ME-BG-35-50
  • Manual
  • A
  • Precision Measuring Device
  • Non-Customized
  • Allendale
  • Dial Diameter - 55mm
  • China
  • 9017300000
  • Bore Gauge
  • Stainless Steel
  • Inside Diameter
  • 35~50mm
  • 0.01mm
  • 0.003mm

35 to 50mm Internal Dial Bore gauge


Internal Dial Bore gauge with a 35 to 50mm measuring range
  • Key Features
  • The dial bore gauge offers - an accurate method of measuring a bore, or detecting a taper or ovality
  • Calibration - The dial bore gauge must be calibrated to a known size and will indicate the deviation from that size by a maximum of 1mm

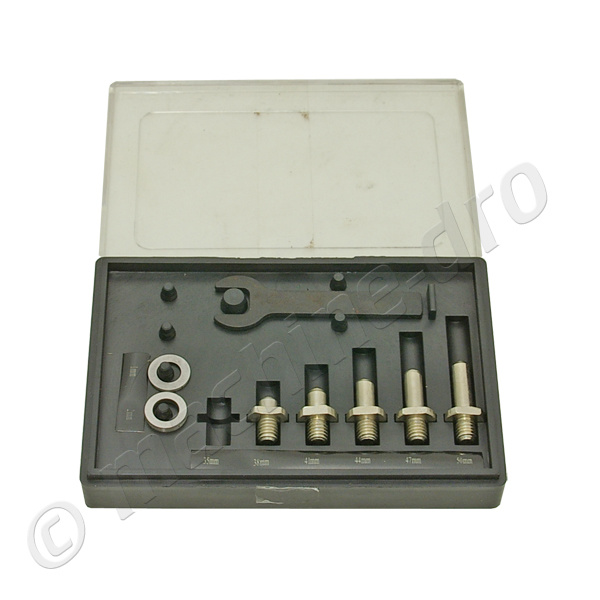

  • A set of spacer rings and anvils are included with the bore gauge

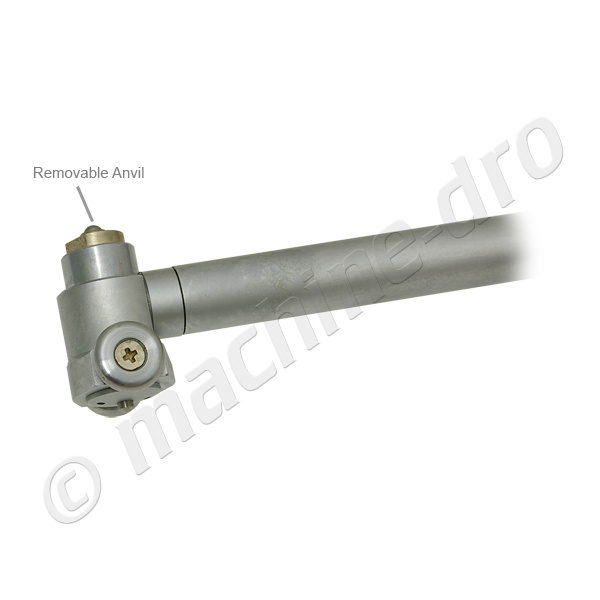

  • The anvils are used to set the measuring range to within 1mm of the desired bore to be measured or produced
  • An outside micrometer, setting ring or slip gauges can be used to calibrate the bore gauge
  • The bore gauge has a knurled locknut to secure the anvils and spacers
  • There is a sprung loaded guide used to centralize the two measuring contact points to the bore
  • At the opposite end of the gauge there is a heat insulating handle with a split collet and knurled locking ring to secure the dial indicator

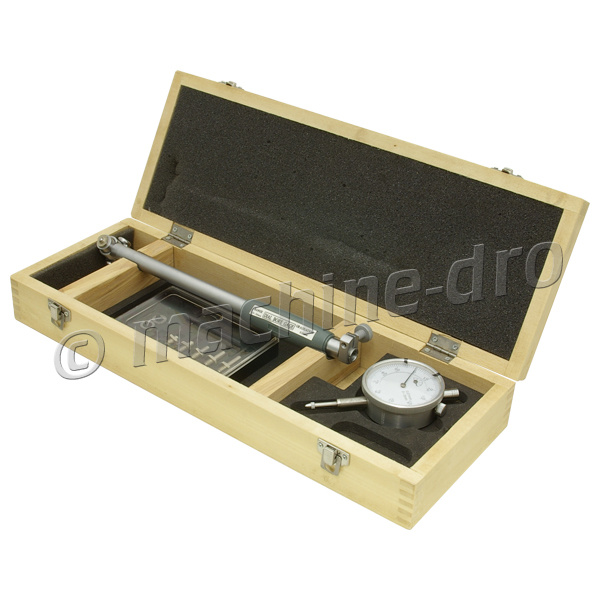

  • Included with the bore gauge - Probe body, Dial indicator, 6 Anvils, 2 Spacer rings, Wooden storage case and Instructions
  • Measuring Range - 35 to 50mm
  • Probe Length - 150mm
  • Dial Diameter - 55mm
  • Resolution - 0.01mm
35 to 50mm Internal Dial Bore Gauge
35 to 50mm Internal Dial Bore Gauge
35 to 50mm Internal Dial Bore Gauge
Despatch Time Preorder
SKU 5055396108699
Part Number ME-BG-35-50
Brand Machine DRO
MPN ME-BG-35-50
Type Cylinder Bore Gauge
Measurement Units Millimetre
Display Type Dial
Range Group 25-50mm / 1-2"
Resolution 0.01mm
