300mm (12") Digital Depth Gauge

  • Shanghai, China

  • Carton

  • L/C, T/T

  • ME-DEPTH-300

  • Manual

  • A

  • Precision Measuring Device

  • Non-Customized

  • Allendale

  • Base Width - 100mm (4 inch)

  • China

  • 9017300000

  • Digital Depth Gauge

  • Stainless Steel

  • Depth

  • 0~300mm

  • 0.01mm

  • 0.003mm

300mm (12") Digital Depth Gauge

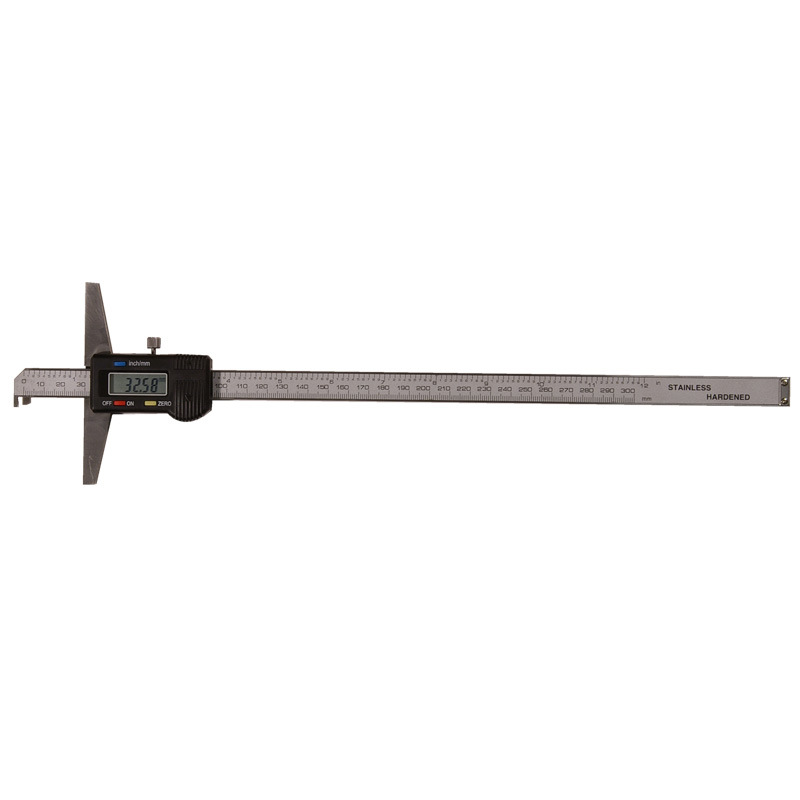

300mm (12inch) digital depth gauge with internal step measuring hook. The base is 100mm (4inch) wide
  • Key Features
  • Measurements - The base is100mm (4inch) wide. The clear and easy to read display can be set to zero in any position, metric or imperial display and auto shut off
  • External data output interface via data cable - Please note data cable is not supplied

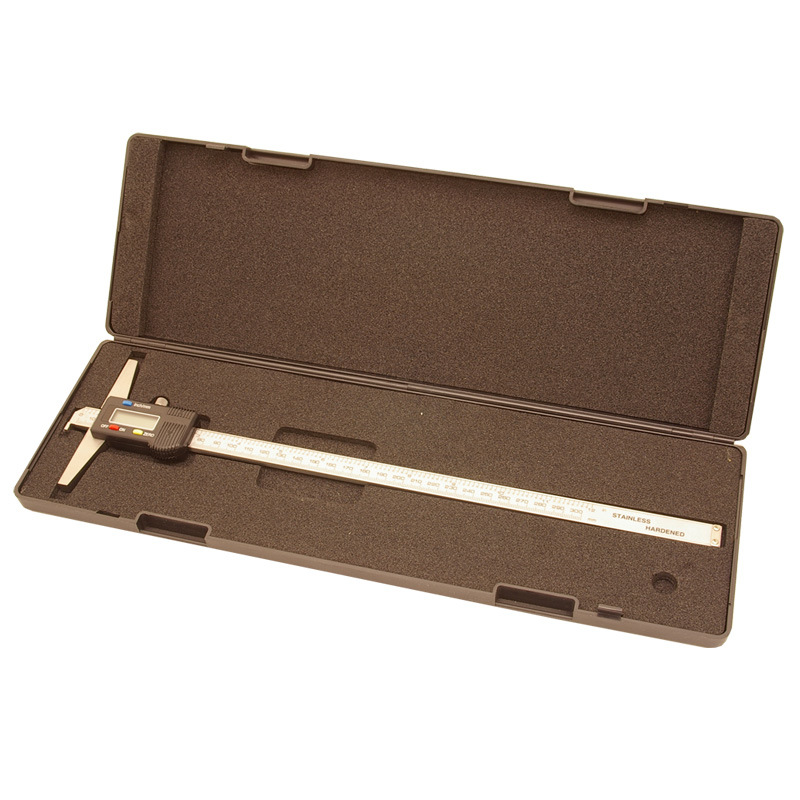

  • Included with the gauge - Storage case, Battery and Instructions
  • The Measuring Hook - The additional versatility of the measuring hook allows this gauge to be used to measure thickness, internal steps on a work piece and access other restricted features
  • The hook is precision ground and hardened, to a thickness of 2mm. The gauge is easy to calibrate, by closing the gauge so the hook is in contact with the caliper base and pressing zero
  • When a thickness or internal step dimension is measured a direct reading can taken from the display. If a depth measurement is taken 2 millimeters will need to be added to the displayed value
  • If the gauge is solely used for the purpose of depth measurement the hook can be cut off and removed permanently
  • Measuring Range - 2-300mm (0-12 inch)
  • Resolution - 0.01mm (0.0005inch)
  • Base Width - 100mm (4 inch)
  • LCD Display - 7mm character height
  • Battery - 1.55V SR44
300mm (12
300mm (12
Despatch Time Same Day Dispatch
SKU 5055396109061
Part Number ME-DEPTH-300
Brand Machine DRO
Display Type Digital
