3 Axis M-Dro Mill Function Digital Readout Display Console

Key Features

The M-DRO MDC700-3M two axis display offers a high performance console with dedicated milling functions.
Functions include; mm/inch, PCD, line of holes, 200 SDM zero memory, arc contouring and incline milling

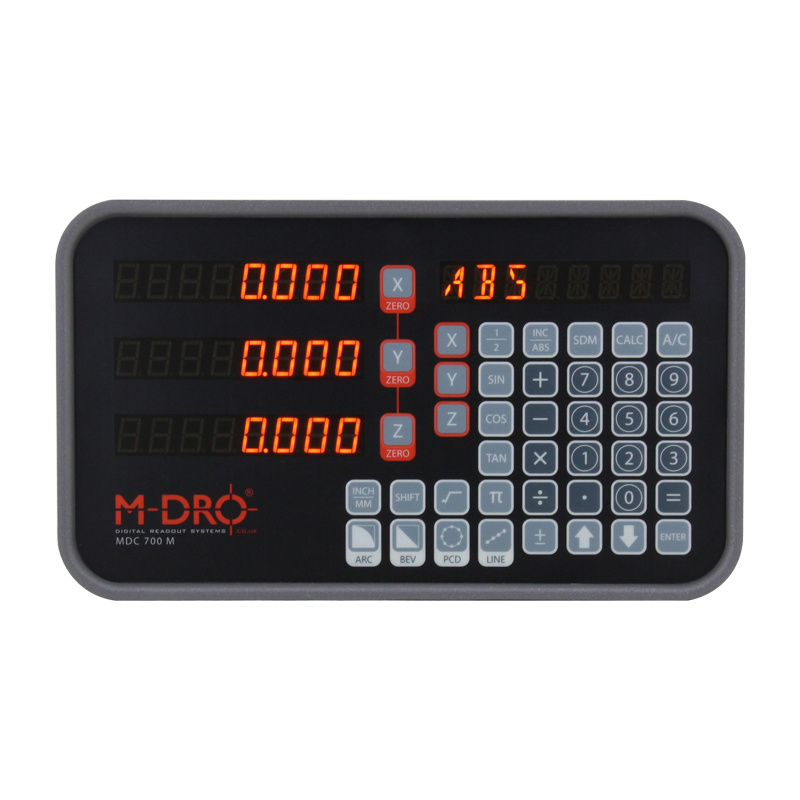

Easy to read filtered LED display with adjustable brightness settings to provide a wide viewing angle in a variety of ambient lighting conditions
Each axis has standard 15mm high 7 segment LED displays and an alpha-numeric instruction display window provides feedback to the operator during function setup and processing
The console features a sturdy die cast metal housing, which offers a very solid feel compared to plastic cased models
Mounting the console is made simple with an angle adjustable bracket and M10 stud fitted to the underside of the housing. A range of mounting arms are available separately
Durable and wipe clean front panel graphic overlay with PCB mount switches for reliability
User friendly front panel layout with dedicated zero key for each axis and clearly identifiable function keys
2 year warranty and full technical support by our team of service engineers
Additional interfaces are available to combine axis together or convert the input to suit other manufacturers equipment
Please feel free to contact our technical staff for assistance as we will be able to help you choose the best set up for your machine
Dimensions: (W) 162mm, (L) 278mm, (H) 68mm
