0-150mm (6") Digital Height Gauge with Carbide Scribe

Quantity:
  • Shanghai, China

  • Carton

  • L/C, T/T

  • ME-HG-150

  • Manual

  • A

  • Precision Measuring Device

  • Non-Customized

  • Allendale

  • Base size - 135mm x 90mm (5 5/16inch x 3 9/16 inch

  • China

  • 9017300000

  • Digital Height Gauge

  • Stainless Steel

  • Length

  • 0ļ½ž150mm

  • 0.01mm

  • 0.03mm

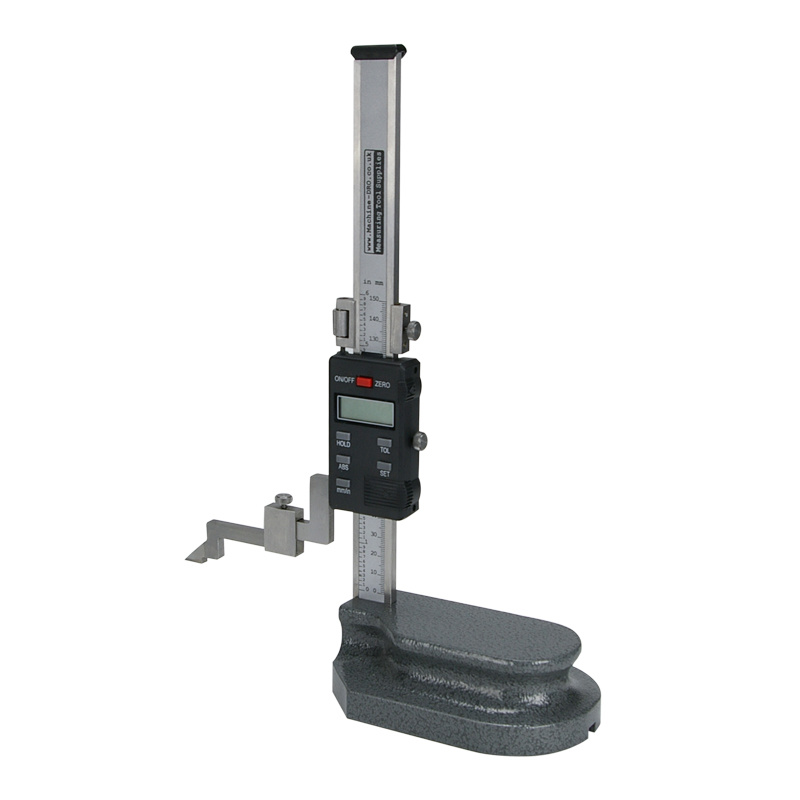

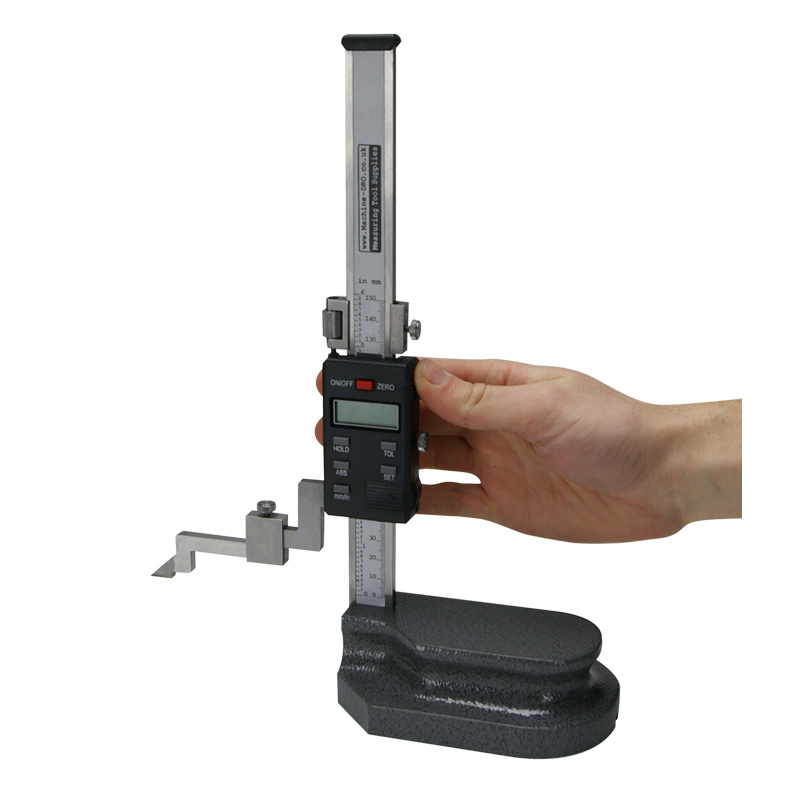

0-150mm (6") Digital Height Gauge with carbide scribe

QUICK OVERVIEW

150mm (6inch) digital height gauge and multi function display. The height gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing
  • Key Features
  • (150mm 6inch) digital height gauge with multi function display - The basic functions include metric or imperial reading and zero the display in any position
  • Tolerance Function - Set a tolerance limit, and the display will indicate if the measurement is under, over or In the set tolerance. The measurement value is also displayed
  • Set Value - Enter a measurement value
  • Hold Function - Will hold the displayed reading until hold button is pressed again
  • ABS/INC - Absolute and incremental zero can be set to zero in any position
  • Data Output - External data output interface via data cable (not supplied)
  • The scale beam is mounted in the ground cast iron base, providing a rigid assembly for the display head. The fine feed adjustment on the display head allows for precision measuring

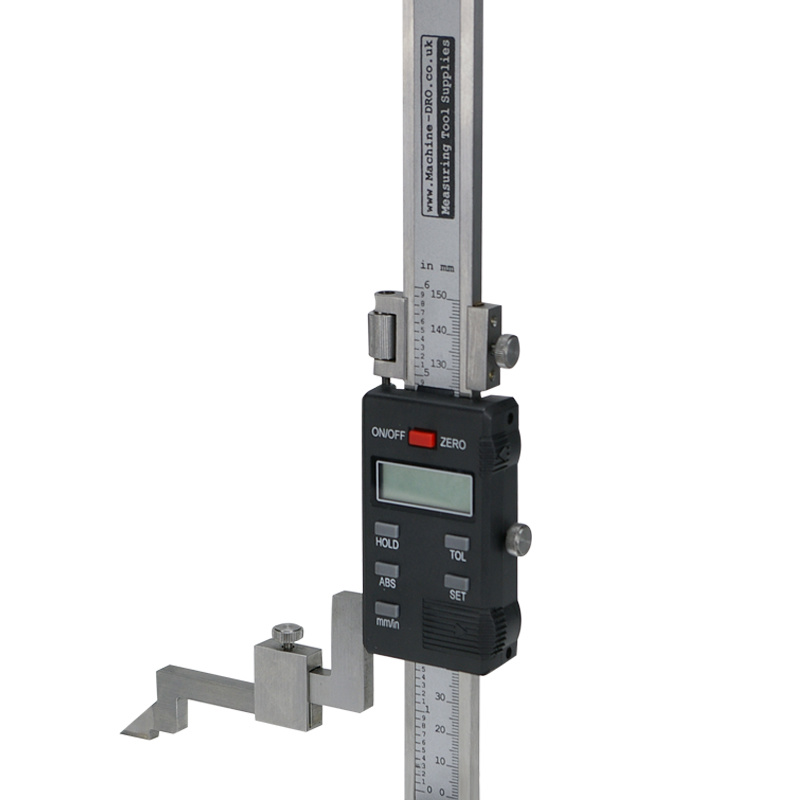

  • The reading head also has a locking screw to fix the head in any position along the scale beam

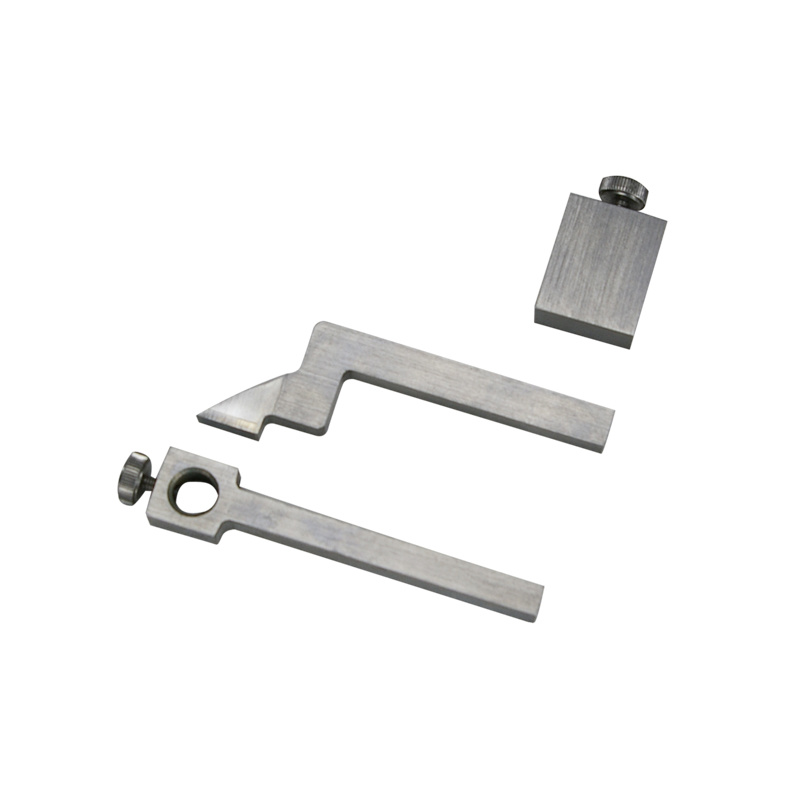

  • The gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing hole with a knurled locking bolt
  • Ideal for attaching depth, thickness, other probes or indicators to the height gauge
  • Included with the Gauge - Scriber with carbide tip, universal attachment, battery and Instructions
  • Overall Height - 317mm (12 1/2inch)
  • Base size - 135mm x 90mm (5 5/16inch x 3 9/16 inch)
  • Resolution - 0.01mm (0.0005inch)
  • Accuracy - +/-0.03mm
0-150mm (6
0-150mm (6
0-150mm (6
0-150mm (6
0-150mm (6
Despatch Time Preorder
SKU 5055396109634
Part Number ME-HG-150
Brand Machine DRO
MPN ME-HG-150
Display Type Digital
Range Group 0-150mm / 0-6"
